CS9201 - 100 mA Low Dropout Linear Regulator

ON Semiconductor

📥 Download Datasheet

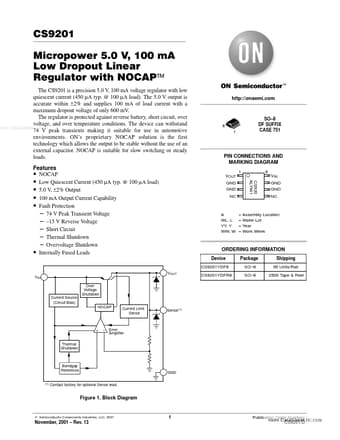

CS9201 Datasheet Preview — Preview of CS9201 PDF

Datasheet Details

Part number	CS9201
Manufacturer	ON Semiconductor
File Size	101.07 KB
Description	100 mA Low Dropout Linear Regulator
Datasheet	CS9201_ONSemiconductor.pdf

CS9201 Product details

Description

Package Lead Number SO 8 1 4, 5 2, 3, 6, 7 8 Lead Symbol VOUT NC GND VIN Function 5.0 V, ± 2%, 100 mA output. 2 5.04 40°C Output Voltage (V) 5.03 5.02 5.01 5.00 4.99 4.98 4.97 0 10 20 30 40 50 60 70 80 90 100 4.96 40 20 0 20 40 60 80 Temperature (°C) 100 120 140 20 mA 100 mA 100 µA Load Regulation (mV) 125°C 25°C Output

Features

NOCAP Low Quiescent Current (450 µΑ typ. @ 100 µA load) 5.0 V, ±2% Output 100 mA Output Current Capability Fault Protection.
74 V Peak Transient Voltage.
15 V Reverse Voltage.
Short Circuit.
Thermal Shutdown.
Overvoltage Shutdown.
Internally Fused Leads http://onsemi. com 8 1 SO.
8 DF SUFFIX CASE 751 PIN.
