CNY171SM, CNY171M - Phototransistor Optocouplers

Name: CNY171SM
SKU: CNY171SM-1502034

ON Semiconductor

📥 Download Datasheet

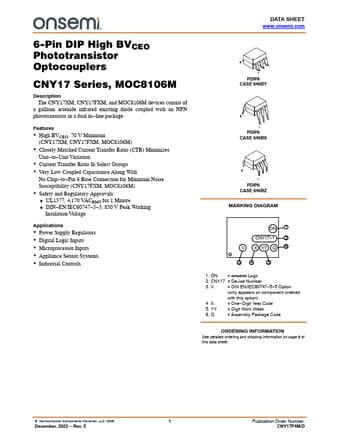

CNY171SM Datasheet Preview — This datasheet PDF includes multiple part numbers: CNY171SM, CNY171M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CNY171SM, CNY171M
Manufacturer	ON Semiconductor
File Size	367.63 KB
Description	Phototransistor Optocouplers
Datasheet	CNY171M-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CNY171SM, CNY171M. Please refer to the document for exact specifications by model.

CNY171SM Product details

Description

The CNY17XM, CNY17FXM, and MOC8106M devices consist of a gallium arsenide infrared emitting diode coupled with an NPN phototransistor in a dual in line package.

Features

High BVCEO: 70 V Minimum (CNY17XM, CNY17FXM, MOC8106M).
Closely Matched Current Transfer Ratio (CTR) Minimizes Unit.
to.
Unit Variation.
Current Transfer Ratio In Select Groups.
Very Low Coupled Capacitance Along With No Chip.
to.
Pin 6 Base Connection for Minimum Noise Susceptibility (CNY17FXM, MOC8106M).
Safety and Regulatory Approvals:  UL1577, 4,170 VACRMS for 1 Minute  DIN.
EN/IEC60747.
5.
5, 850 V Peak Working Ins.
