CM6126 - Single-Channel Transient Voltage Suppressor

Name: CM6126
SKU: CM6126-966182

ON Semiconductor

📥 Download Datasheet

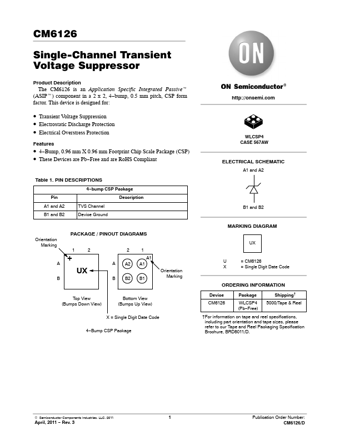

CM6126 Datasheet Preview — Preview of CM6126 PDF

Datasheet Details

Part number	CM6126
Manufacturer	ON Semiconductor
File Size	147.07 KB
Description	Single-Channel Transient Voltage Suppressor
Datasheet	CM6126-ONSemiconductor.pdf

CM6126 Product details

Description

The CM6126 is an Application Specific Integrated Passivet (ASIPt) component in a 2 x 2, 4 bump, 0.5 mm pitch, CSP form factor. Transient Voltage Suppression Electrostatic Discharge Protection Electrical Overstress Protection

Features

4.
Bump, 0.96 mm X 0.96 mm Footprint Chip Scale Package (CSP).
These Devices are Pb.
Free and are RoHS Compliant Table 1. PIN.
