CAV25160, CAV25080 - SPI Serial CMOS EEPROM

ON Semiconductor

The CAV25160 by ON Semiconductor is a SPI Serial CMOS EEPROM. Below is the official datasheet preview.

📥 Download Datasheet

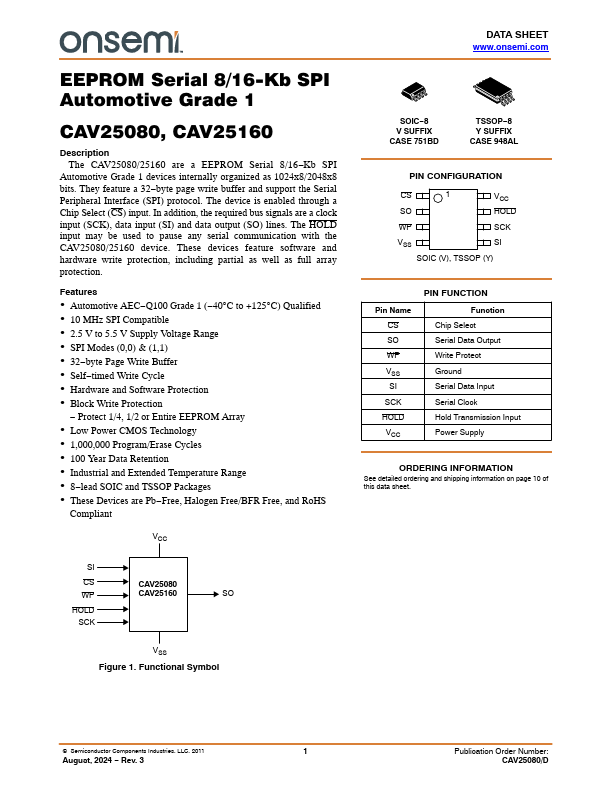

CAV25160 SPI Serial CMOS EEPROM by ON Semiconductor - Datasheet Preview — Official preview page of the **CAV25160** SPI Serial CMOS EEPROM datasheet (ON Semiconductor).

Datasheet Details

Part number	CAV25160, CAV25080
Manufacturer	ON Semiconductor
File Size	281.21 KB
Description	SPI Serial CMOS EEPROM
Datasheet	CAV25080_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CAV25160, CAV25080. Please refer to the document for exact specifications by model.

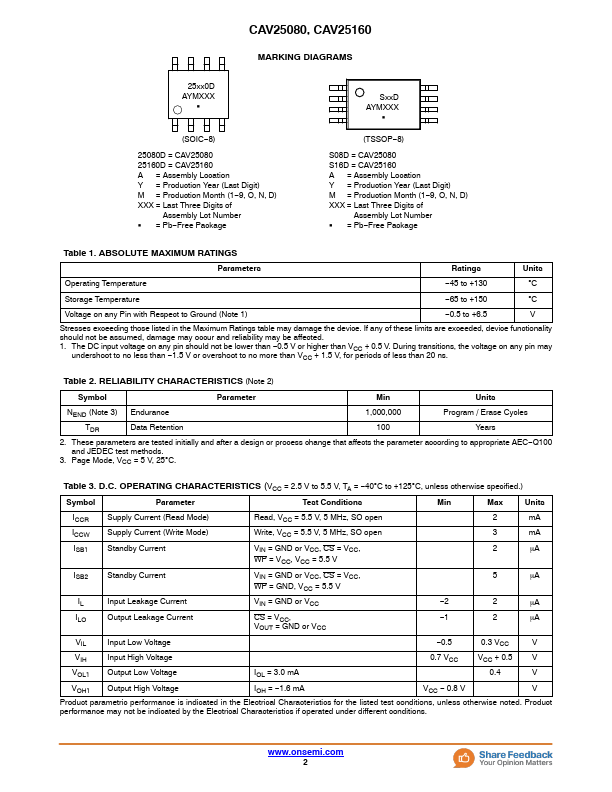

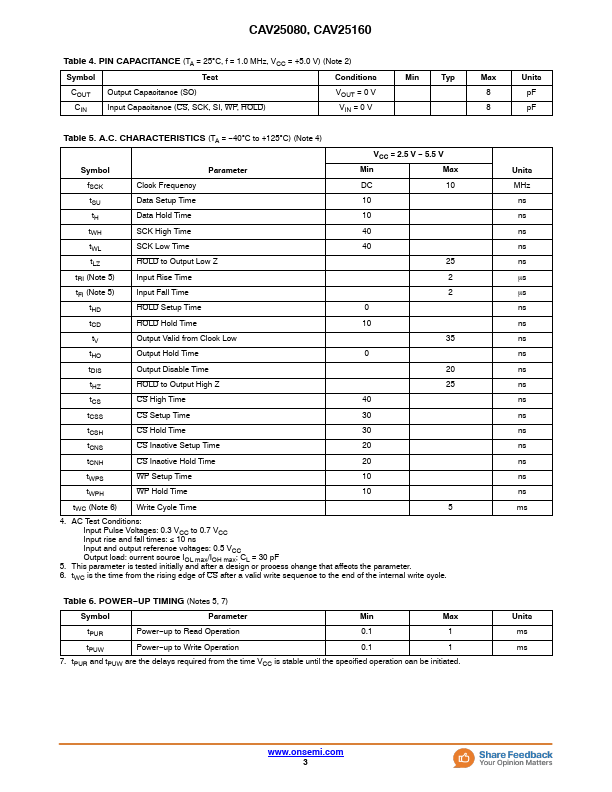

Additional preview pages of the CAV25160 datasheet.

CAV25160 Product details

Description

The CAV25080/25160 are a EEPROM Serial 8/16 Kb SPI Automotive Grade 1 devices internally organized as 1024x8/2048x8 bits.They feature a 32 byte page write buffer and support the Serial Peripheral Interface (SPI) protocol.

Features

Automotive AEC.
Q100 Grade 1 (.
40C to +125C) Qualified.
10 MHz SPI Compatible.
2.5 V to 5.5 V Supply Voltage Range.
SPI Modes (0,0) & (1,1).
32.
byte Page Write Buffer.
Self.
timed Write Cycle.
Hardware and Software Protection.
Block Write Protection.
Protect 1/4, 1/2 or Entire EEPROM Array.
Low Power CMOS Technology.
1,000,000 Program/Erase Cycles.
100 Year Data Retention.
Industrial and Extende.
