CAT93C46R - 1kb Microwire Serial EEPROM

Description

The CAT93C46R is a 1

which is organized as either 64 registers of 16 bits or 128 registers of 8 bits, as determined by the state of the ORG pin.

Features

  • sequential read and self.
  • timed internal write with auto.
  • clear. On.
  • chip Power.
  • On Reset circuitry protects the internal logic against powering up in the wrong state. In contrast to the CAT93C46, the CAT93C46R features an internal instruction clock counter which provides improved noise immunity for Write/Erase commands. Features.
  • High Speed Operation: 4 MHz @ 5 V, 2 MHz @ 1.8 V.
  • 1.8 V to 5.5 V Supply Voltage Range.
  • Selectable x8 or x16 Memo.

📥 Download Datasheet

Datasheet Details

Part number CAT93C46R
Manufacturer onsemi
File Size 178.78 KB
Description 1kb Microwire Serial EEPROM
Datasheet download datasheet CAT93C46R Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CAT93C46R 1-Kb Microwire Serial EEPROM Catalyst Semiconductor
CAT93C46 1K/2K/2K/4K/16K-Bit Microwire Serial E2PROM Catalyst Semiconductor
CAT93C4611 Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer Catalyst Semiconductor
CAT93C4612 Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer Catalyst Semiconductor
CAT93C4613 Supervisory Circuits with Microwire Serial CMOS E2PROM/ Precision Reset Controller and Watchdog Timer Catalyst Semiconductor

Other Datasheets by onsemi

Part Number Description
CAT93C46 1Kb Microwire Serial EEPROM
CAT93C46B 1Kb Microwire Serial EEPROM
CAT93C56 2Kb Microwire Serial EEPROM
CAT93C57 2Kb Microwire Serial EEPROM
CAT93C66 4kb Microwire Serial CMOS EEPROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

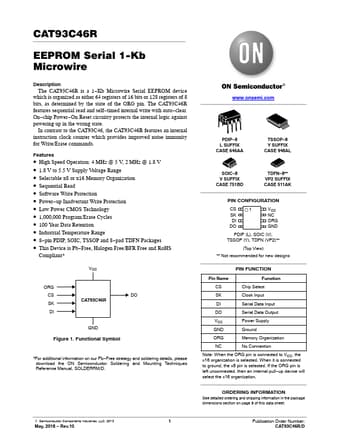

CAT93C46R EEPROM Serial 1-Kb Microwire Description The CAT93C46R is a 1−Kb Microwire Serial EEPROM device which is organized as either 64 registers of 16 bits or 128 registers of 8 bits, as determined by the state of the ORG pin. The CAT93C46R features sequential read and self−timed internal write with auto−clear. On−chip Power−On Reset circuitry protects the internal logic against powering up in the wrong state. In contrast to the CAT93C46, the CAT93C46R features an internal instruction clock counter which provides improved noise immunity for Write/Erase commands. Features • High Speed Operation: 4 MHz @ 5 V, 2 MHz @ 1.8 V • 1.8 V to 5.
