CAT34TS04 - Digital Output Temperature Sensor

ON Semiconductor

The CAT34TS04 by ON Semiconductor is a Digital Output Temperature Sensor. Below is the official datasheet preview.

📥 Download Datasheet

CAT34TS04 Digital Output Temperature Sensor by ON Semiconductor - Datasheet Preview — Official preview page of the **CAT34TS04** Digital Output Temperature Sensor datasheet (ON Semiconductor).

Datasheet Details

Part number	CAT34TS04
Manufacturer	ON Semiconductor
File Size	196.53 KB
Description	Digital Output Temperature Sensor
Datasheet	CAT34TS04-ONSemiconductor.pdf

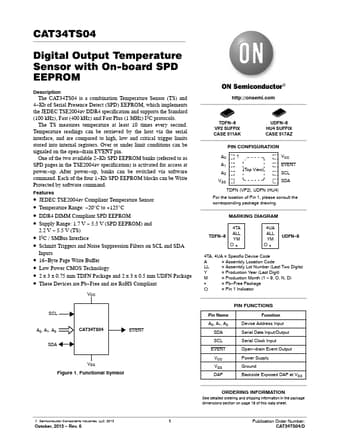

Additional preview pages of the CAT34TS04 datasheet.

CAT34TS04 Product details

Description

The CAT34TS04 is a combination Temperature Sensor (TS) and 4 Kb of Serial Presence Detect (SPD) EEPROM, which implements the JEDEC TSE2004av DDR4 specification and supports the Standard (100 kHz), Fast (400 kHz) and Fast Plus (1 MHz) I2C protocols.

Features

JEDEC TSE2004av Compliant Temperature Sensor.
Temperature Range:.
20°C to +125°C.
DDR4 DIMM Compliant SPD EEPROM.
Supply Range: 1.7 V.
5.5 V (SPD EEPROM) and 2.2 V.
5.5 V (TS).
I2C / SMBus Interface.
Schmitt Triggers and Noise Suppression Filters on SCL and SDA Inputs.
16.
Byte Page Write Buffer.
Low Power CMOS Technology.
2 x 3 x 0.75 mm TDFN Package and 2 x 3 x 0.5 mm UDFN Package.
