CAT28C257 - 256 kb CMOS Parallel EEPROM

Description

The CAT28C257 is a fast, low power, 5 V only CMOS Parallel EEPROM organized as 32K x 8

bits.

system programming.

chip address and data latches, self timed write cycle with auto clear and VCC power up/down write

Features

  • hardware and software write protection. The CAT28C257 is manufactured using ON Semiconductor’s advanced CMOS floating gate technology. It is designed to endure 100,000 program/erase cycles and has a data retention of 100 years. The device is available in JEDEC approved 28.
  • pin DIP or 32.
  • pin PLCC packages. Features.
  • Fast Read Access Times: 120/150 ns.
  • Low Power CMOS Dissipation:.
  • Active: 25 mA Max.
  • Standby: 150 mA Max.
  • Simple Write Ope.

📥 Download Datasheet

Datasheet Details

Part number CAT28C257
Manufacturer onsemi
File Size 129.84 KB
Description 256 kb CMOS Parallel EEPROM
Datasheet download datasheet CAT28C257 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CAT28C257 256K-Bit CMOS PARALLEL E2PROM Catalyst Semiconductor
CAT28C256 32K-Bit Parallel E2PROM Catalyst Semiconductor
CAT28C010 1024K-Bit CMOS PARALLEL E2PROM Catalyst Semiconductor
CAT28C16A 16K-Bit CMOS PARALLEL E2PROM Catalyst Semiconductor
CAT28C17A 16K-Bit CMOS PARALLEL E2PROM Catalyst Semiconductor

Other Datasheets by onsemi

Part Number Description
CAT28C16A 16-kb CMOS Parallel EEPROM
CAT28C17A 16-kb CMOS Parallel EEPROM
CAT28C512 512K-Bit CMOS PARALLEL EEPROM
CAT28C513 512K-Bit CMOS PARALLEL EEPROM
CAT28C65B 64K-Bit CMOS PARALLEL EEPROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

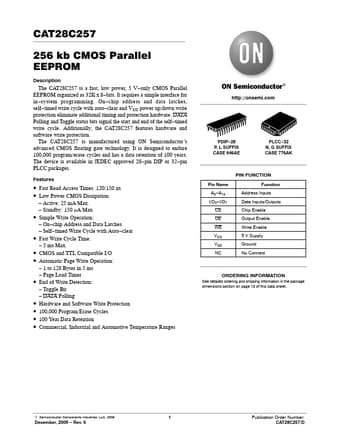

CAT28C257 256 kb CMOS Parallel EEPROM Description The CAT28C257 is a fast, low power, 5 V−only CMOS Parallel EEPROM organized as 32K x 8−bits. It requires a simple interface for in−system programming. On−chip address and data latches, self−timed write cycle with auto−clear and VCC power up/down write protection eliminate additional timing and protection hardware. DATA Polling and Toggle status bits signal the start and end of the self−timed write cycle. Additionally, the CAT28C257 features hardware and software write protection. The CAT28C257 is manufactured using ON Semiconductor’s advanced CMOS floating gate technology. It is designed to endure 100,000 program/erase cycles and has a data retention of 100 years.
