BC847CDXV6T1G - Dual General Purpose Transistors

Features

  • AEC.
  • Q101 Qualified and PPAP Capable.
  • S Prefix for Automotive and Other.

📥 Download Datasheet

Datasheet Details

Part number BC847CDXV6T1G
Manufacturer onsemi
File Size 123.95 KB
Description Dual General Purpose Transistors
Datasheet download datasheet BC847CDXV6T1G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BC847CDLP 45V DUAL NPN SMALL SIGNAL TRANSISTOR Diodes
BC847CDW GENERAL PURPOSE TRANSISTOR AiT Semiconductor
BC847CDW1T1 Dual General Purpose Transistors ETL
BC847C NPN Transistor GME
BC847C 100 mA NPN general-purpose transistors NXP

Other Datasheets by onsemi

Part Number Description
BC847CDXV6T1 Dual General Purpose Transistors
BC847CDXV6T5 Dual General Purpose Transistors
BC847CDXV6T5G Dual General Purpose Transistors
BC847C General Purpose Transistors
BC847CLT1G NPN Silicon Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

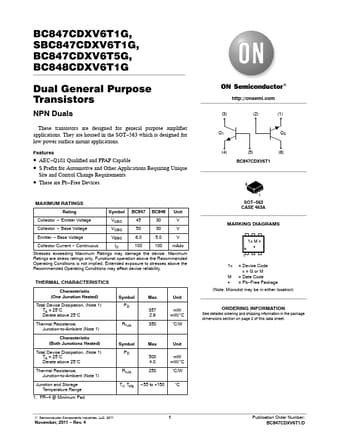

BC847CDXV6T1G, SBC847CDXV6T1G, BC847CDXV6T5G, BC848CDXV6T1G Dual General Purpose Transistors NPN Duals These transistors are designed for general purpose amplifier applications. They are housed in the SOT−563 which is designed for low power surface mount applications. Features • AEC−Q101 Qualified and PPAP Capable • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements • These are Pb−Free Devices MAXIMUM RATINGS Rating Symbol BC847 BC848 Unit Collector − Emitter Voltage VCEO 45 30 V Collector − Base Voltage VCBO 50 30 V Emitter − Base Voltage VEBO 6.0 5.0 V Collector Current − Continuous IC 100 100 mAdc Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only.
