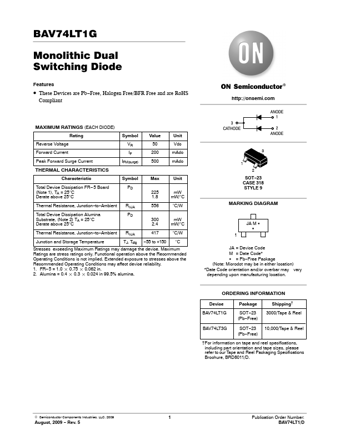

BAV74LT1G Monolithic Dual Switching Diode
Features
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
http://onsemi.com
ANODE 1
MAXIMUM RATINGS (EACH DIODE)
Rating Reverse Voltage Forward Current Peak Forward Surge Current Symbol VR IF IFM(surge) Value 50 200 500 Unit Vdc mAdc mAdc
3 CATHODE
2 ANODE
3 1 2
THERMAL CHARACTERISTICS
Characteristic Total Device Dissipation FR− 5 Board (Note 1), TA = 25°C Derate above 25°C Thermal Resistance, Junction−to−Ambient Total Device Dissipation Alumina Substrate, (Note 2) TA = 25°C Derate above 25°C Thermal Resistance, Junction−to−Ambient Junction and Storage Temperature Symbol PD Max 225 1.8 556 300 2.
