AR0246 - 1/4-inch 2-MP CMOS Digital Image Sensor

AR0246 Description

1/4-inch 2 MP CMOS Digital Image Sensor AR0246 General .
The onsemi AR0246 is a stacked 1/4. inch back side illuminated (BSI) CMOS active. pixel digital image sensor with a pixel array of 1920.

AR0246 Features

* 1080p ( 1920 x 1080, Full Resolution of 2 MP) at 60 fps Linear Mode Video Capture
* Full Resolution at 30 fps, 3
* exposure embedded High Dynamic Range (eHDR) Video Capture with Exposure Ratio Control
* Full Resolution at 45 fps, enhanced Dynamic Range (eDR) Video Capture for enh

AR0246 Applications

* Table 1. KEY PERFORMANCE PARAMETERS Parameter Typical Value Optical Format 1/4
* inch (4.41 mm Diagonal, 16:9) Active Pixels 1920 (H) x 1080 (V) Pixel Size 2.0 mm x 2.0 mm, BSI Color Filter Array Chief Ray Angle RGB 10, 32 Shutter Type ERS and GRR One
* Time Programmable

📥 Download Datasheet

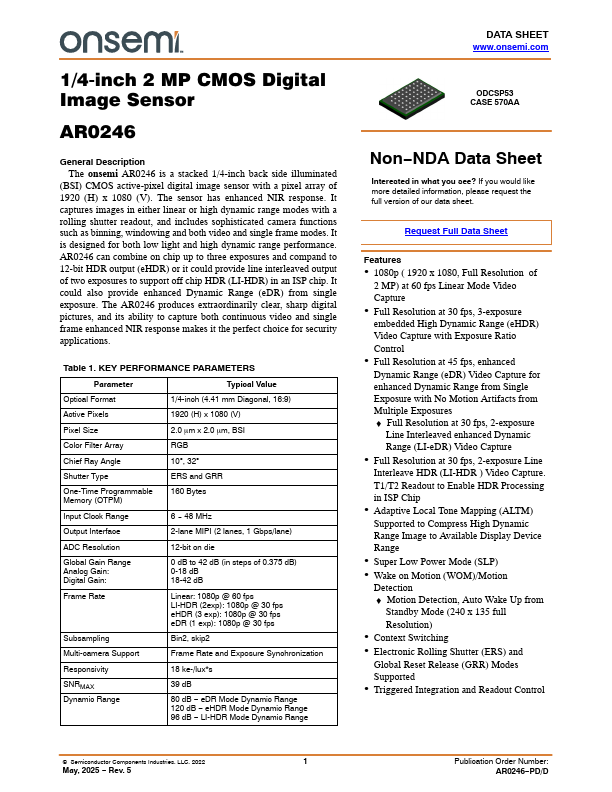

Preview of AR0246 PDF

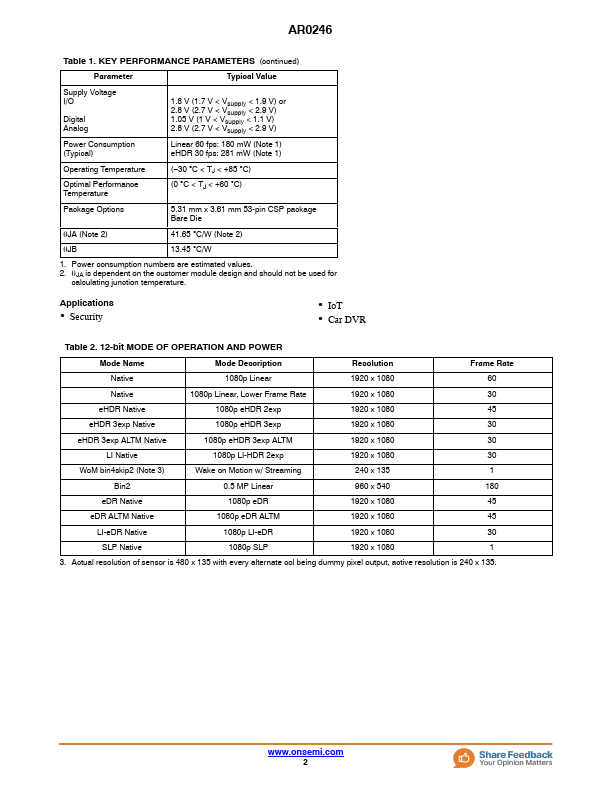

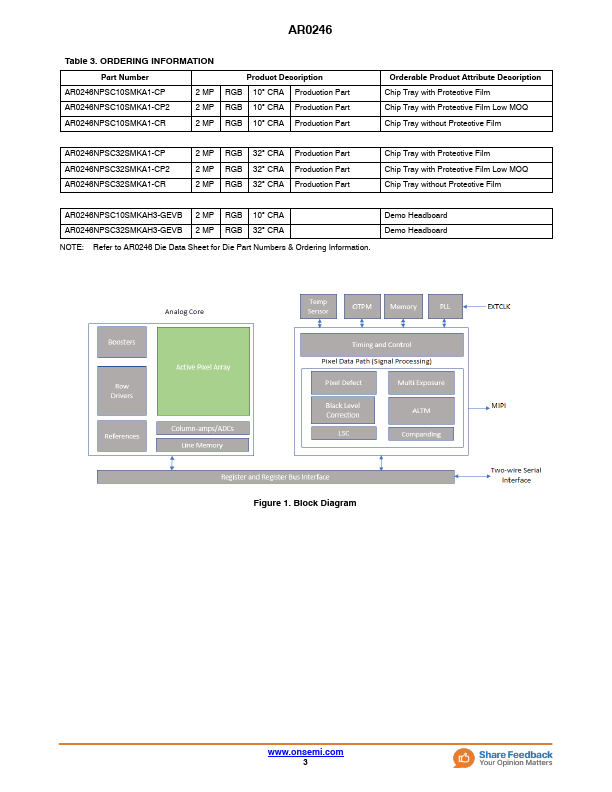

datasheet Preview Page 2 datasheet Preview Page 3
