ADP3120A Datasheet (ON Semiconductor)

ADP3120A, 12V MOSFET Driver

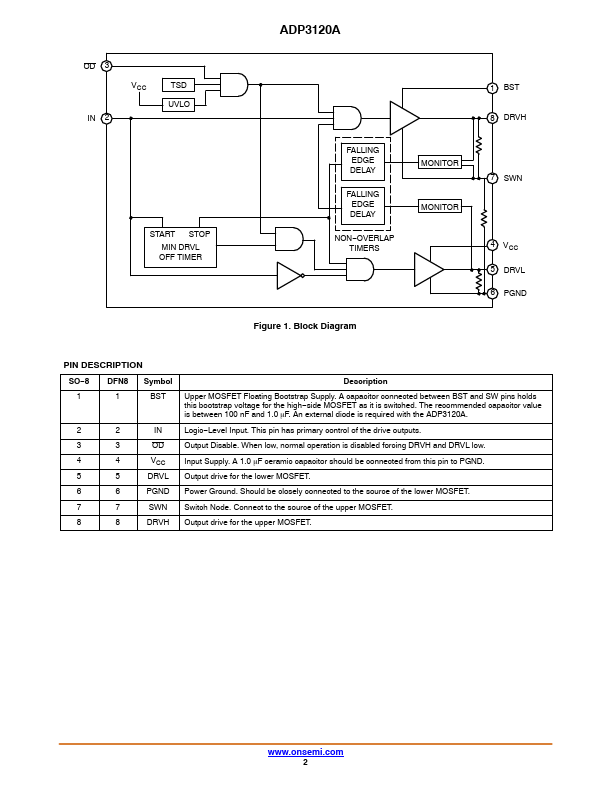

SO *8 DFN8 Symbol 1 1 BST 2 2 IN 3 3 OD 4 4 VCC 5 5 DRVL 6 6 PGND 7 7 SWN 8 8 DRVH Description Upper MOSFET Floating Bootstrap Supply.

A capacitor connected between BST and SW pins holds this bootstrap voltage for the high *side MOSFET as it is switched.

The r

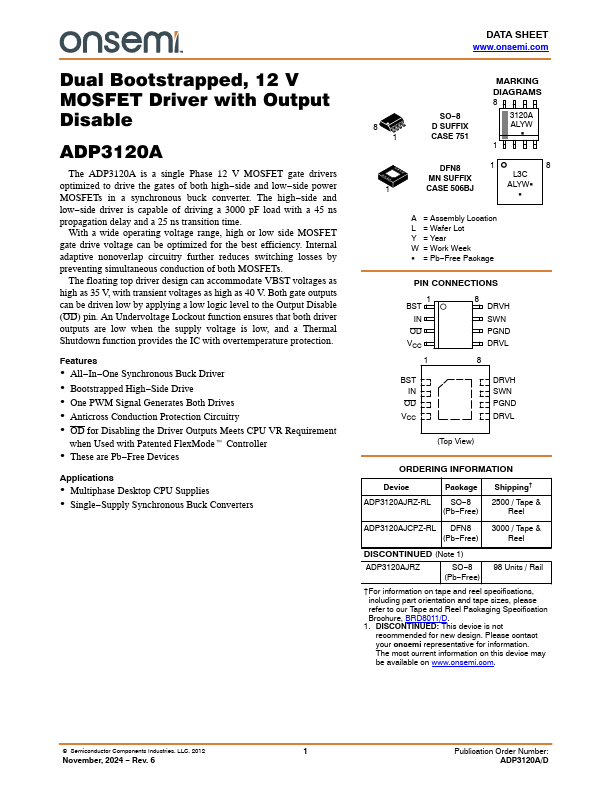

Dual Bootstrapped, 12 V MOSFET Driver with Output Disable ADP3120A The ADP3120A is a single Phase 12 V MOSFET gate drivers optimized to drive the gates of both high side and low side power MOSFETs in a synchronous buck converter.

The high side and low side driver is capable of driving a 3000 pF load with a 45 ns propagation delay and a 25 ns transition time.

With a wide operating voltage range, high or low side MOSFET gate drive voltage can be optimized for the be

ADP3120A Features

* All

* In

* One Synchronous Buck Driver

* Bootstrapped High

* Side Drive

* One PWM Signal Generates Both Drives

* Anticross Conduction Protection Circuitry

* OD for Disabling the Driver Outputs Meets CPU VR Requirement when Used with Patented FlexModet Controll
