74VHC02M, 74VHC02 - Quad 2-Input NOR Gate

ON Semiconductor

📥 Download Datasheet

74VHC02M Datasheet Preview — This datasheet PDF includes multiple part numbers: 74VHC02M, 74VHC02. Please refer to the document for exact specifications by model.

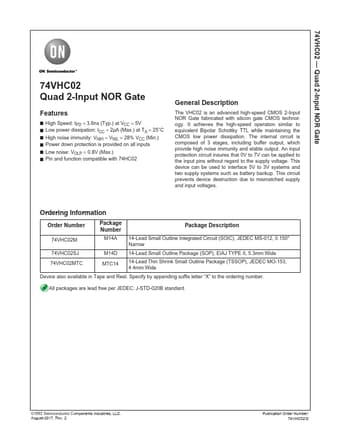

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	74VHC02M, 74VHC02
Manufacturer	ON Semiconductor
File Size	545.27 KB
Description	Quad 2-Input NOR Gate
Datasheet	74VHC02-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: 74VHC02M, 74VHC02. Please refer to the document for exact specifications by model.

74VHC02M Product details

Description

The VHC02 is an advanced high-speed CMOS 2-Input NOR Gate fabricated with silicon gate CMOS technology.

Features

High Speed: tPD = 3.6ns (Typ. ) at VCC = 5V.
Low power dissipation: ICC = 2µA (Max. ) at TA = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (Min. ).
Power down protection is provided on all inputs.
Low noise: VOLP = 0.8V (Max. ).
Pin and function compatible with 74HC02 General.
