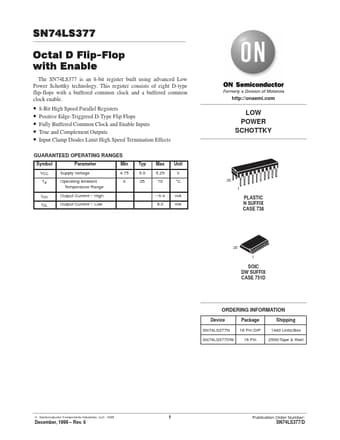

SN74LS377 Octal D Flip-Flop with Enable
The SN74LS377 is an 8-bit register built using advanced Low Power Schottky technology. This register consists of eight D-type flip-flops with a buffered common clock and a buffered common clock enable.
http://onsemi.com
• • • • •
8-Bit High Speed Parallel Registers Positive Edge-Triggered D-Type Flip Flops Fully Buffered Common Clock and Enable Inputs True and Complement Outputs Input Clamp Diodes Limit High Speed Termination Effects
LOW POWER SCHOTTKY
GUARANTEED OPERATING RANGES
Symbol VCC TA IOH IOL Parameter Supply Voltage Operating Ambient Temperature Range Output Current – High Output Current – Low Min 4.75 0 Typ 5.0 25 Max 5.25 70 – 0.4 8.
