6N139M - Single-Channel High Gain Split Darlington Optocouplers

ON Semiconductor

📥 Download Datasheet

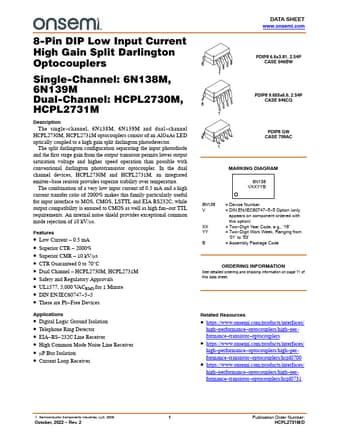

6N139M Datasheet Preview — Preview of 6N139M PDF

Datasheet Details

Part number	6N139M
Manufacturer	ON Semiconductor
File Size	394.08 KB
Description	Single-Channel High Gain Split Darlington Optocouplers
Datasheet	6N139M-ONSemiconductor.pdf

6N139M Product details

Description

The single channel, 6N138M, 6N139M and dual channel HCPL2730M, HCPL2731M optocouplers consist of an AlGaAs LED optically coupled to a high gain split darlington photodetector.The split darlington configuration separating the input photodiode and the first stage gain from the output transistor permits lower output saturation voltage and higher speed operation than possible with conventional darlington phototransistor optocoupler.In the dual channel devices, HCPL2730M and HCPL273

Features

Low Current.
0.5 mA.
Superior CTR.
2000%.
Superior CMR.
10 kV/ms.
CTR Guaranteed 0 to 70°C.
Dual Channel.
HCPL2730M, HCPL2731M.
Safety and Regulatory Approvals.
UL1577, 5,000 VACRMS for 1 Minute.
DIN EN/IEC60747.
5.
5.
These are Pb.
Free Devices.
