2SK4125 - N-Channel Power MOSFET

ON Semiconductor

📥 Download Datasheet

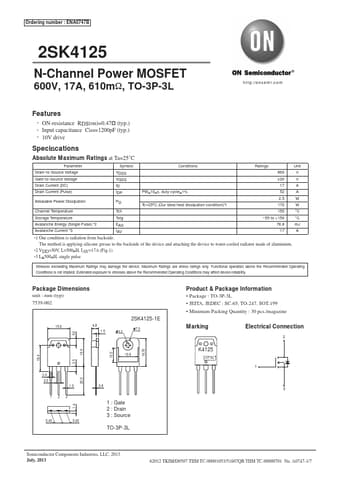

2SK4125 Datasheet Preview — Preview of 2SK4125 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK4125
Manufacturer	ON Semiconductor
File Size	208.67 KB
Description	N-Channel Power MOSFET
Datasheet	2SK4125-ONSemiconductor.pdf

2SK4125 Product details

Features

ON-resistance RDS(on)=0.47Ω (typ. ).
Input capacitance Ciss=1200pF (typ. ).
10V drive Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Symbol Conditions Ratings Unit Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature VDSS VGSS ID IDP PD Tch PW≤10μs, duty cycle≤1% Tc=25°C (Our ideal heat dissipation condition).
1 600 V ±30 V 17 A 52 A 2.5 W 170 W 150 °C Storage.
