2SA1770 - Bipolar Transistor

ON Semiconductor

📥 Download Datasheet

2SA1770 Datasheet Preview — Preview of 2SA1770 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SA1770
Manufacturer	ON Semiconductor
File Size	618.75 KB
Description	Bipolar Transistor
Datasheet	2SA1770-ONSemiconductor.pdf

2SA1770 Product details

Features

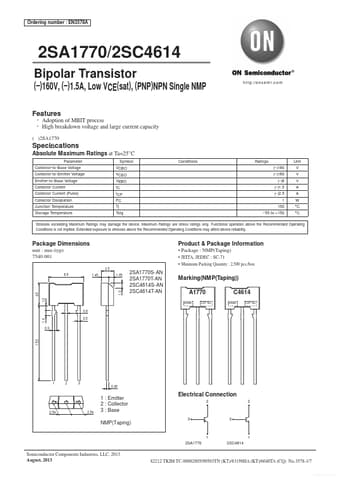

http://onsemi. com Adoption of MBIT process High breakdown voltage and large current capacity ( )2SA1770 Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Conditions Ratings (--)180 (--)160 (--)6 (--)1.5 (--)2.5 1 150 --55 to +150 Unit V V V.
