1PMT28AT3 - Zener Transient Voltage Suppressor

Download the 1PMT28AT3 datasheet PDF. This datasheet also covers the 1PMT12AT3 variant, as both devices belong to the same zener transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Stand.
  • off Voltage: 5.0 V.
  • 58 V.
  • Peak Power.
  • 200 W @ 1 ms (1PMT5.0A.
  • 1PMT36A).
  • 175 W @ 1 ms (1PMT40A.
  • 1PMT58A).
  • Maximum Clamp Voltage @ Peak Pulse Current.
  • Low Leakag.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1PMT12AT3_ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1PMT28AT3
Manufacturer onsemi
File Size 65.04 KB
Description Zener Transient Voltage Suppressor
Datasheet download datasheet 1PMT28AT3 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1PMT4099 Powermite Low Noise 1 Watt Zener Diodes Microsemi
1PMT4100 Powermite Low Noise 1 Watt Zener Diodes Microsemi
1PMT4101 Powermite Low Noise 1 Watt Zener Diodes Microsemi
1PMT4102 Powermite Low Noise 1 Watt Zener Diodes Microsemi
1PMT4103 Powermite Low Noise 1 Watt Zener Diodes Microsemi

Other Datasheets by onsemi

Part Number Description
1PMT28AT1 Zener Transient Voltage Suppressor
1PMT28ATx (1PMTxxAT1/T3) Zener Transient Voltage Suppressor POWERMITE Package
1PMT22AT1 Zener Transient Voltage Suppressor
1PMT22AT3 Zener Transient Voltage Suppressor
1PMT22ATx Zener Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

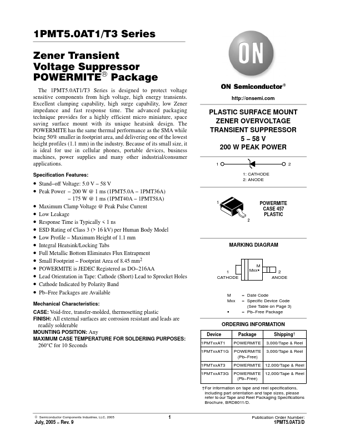

1PMT5.0AT1/T3 Series Zener Transient Voltage Suppressor POWERMITE® Package The 1PMT5.0AT1/T3 Series is designed to protect voltage sensitive components from high voltage, high energy transients. Excellent clamping capability, high surge capability, low Zener impedance and fast response time. The advanced packaging technique provides for a highly efficient micro miniature, space saving surface mount with its unique heatsink design. The POWERMITE has the same thermal performance as the SMA while being 50% smaller in footprint area, and delivering one of the lowest height profiles (1.1 mm) in the industry. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines, power supplies and many other industrial/consumer applications.
