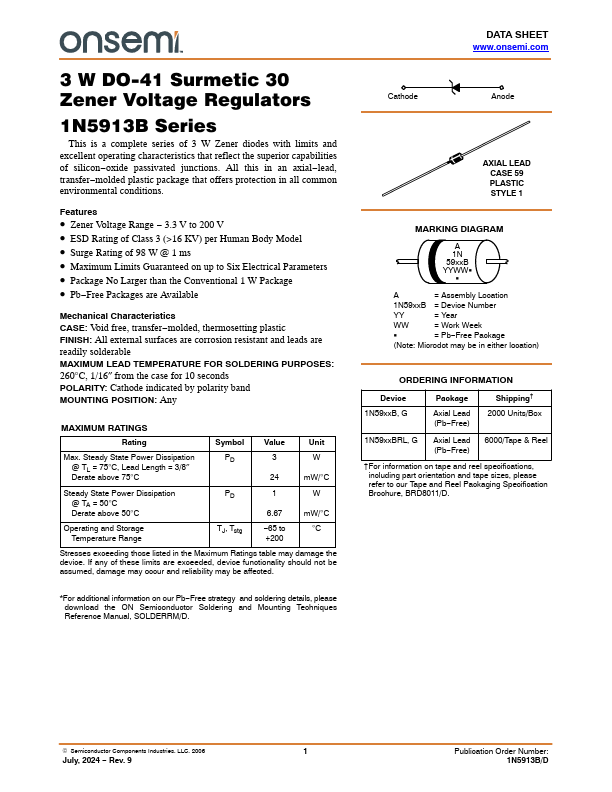

1N5925B, 1N5913B - Zener Voltage Regulators

ON Semiconductor

Datasheet Details

Part number: 1N5925B, 1N5913B
Manufacturer: ON Semiconductor ↗
File Size: 184.32 KB
Datasheet: 1N5913B_ONSemiconductor.pdf
Description: Zener Voltage Regulators
Note: This datasheet PDF includes multiple part numbers: 1N5925B, 1N5913B.
Please refer to the document for exact specifications by model.

Zener Voltage Range.
3.3 V to 200 V.
ESD Rating of Class 3 (>16 KV) per Human Body Model.
Surge Rating of 98 W @ 1 ms.
Maximum Limits Guaranteed on up to Six Electrical Parameters.
Package No Larger than the Conventional 1 W Package.
Pb.
Free Packages are Available Mechanical Characteristics CASE: Void free, transfer.
molded, thermosetting plastic FINISH: All external surfaces are corrosion resistant and leads are read.
