Description

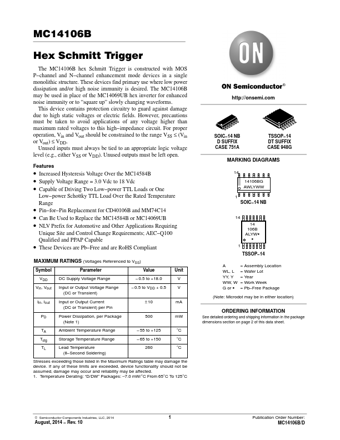

MC14106B Hex Schmitt Trigger The MC14106B hex Schmitt Trigger is constructed with MOS P *channel and N *channel enhancement mode device.

📥 Download Datasheet

Preview of 14106BCP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Increased Hysteresis Voltage Over the MC14584B
* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* Capable of Driving Two Low
* power TTL Loads or One Low
* power Schottky TTL Load Over the Rated Temperature Range
* Pin
* for
* Pin Replacement for C

Applications

* of any voltage higher than maximum rated voltages to this high
* impedance circuit. For proper operation, Vin and Vout should be constrained to the range VSS ≤ (Vin or Vout) ≤ VDD. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either VSS or VDD). Unused outputs
