1200P100 Datasheet (ON Semiconductor) - PWM Current-Mode Controller

1200P100, PWM Current-Mode Controller

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ PinNo.

PinName Function ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ 1 Adj Adjust the Skipping Peak Current ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ 2 FB Sets the Peak Current Setpoint ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ 3 CS Current Sense In

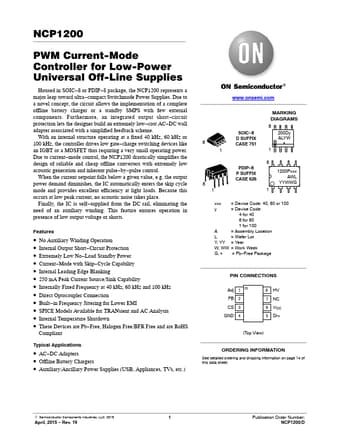

NCP1200 PWM Current-Mode Controller for Low-Power Universal Off-Line Supplies Housed in SOIC 8 or PDIP 8 package, the NCP1200 represents a major leap toward ultra compact Switchmode Power Supplies.

Due to a novel concept, the circuit allows the implementation of a complete offline battery charger or a standby SMPS with few external components.

Furthermore, an integrated output short circuit protection lets the designer build an extremely low cost AC

1200P100 Features

* No Auxiliary Winding Operation

* Internal Output Short

* Circuit Protection

* Extremely Low No

* Load Standby Power

* Current

* Mode with Skip

* Cycle Capability

* Internal Leading Edge Blanking

* 250 mA Peak Current Source/Si
