2SMPB-01-01 Datasheet - OMRON

2SMPB-01-01 Absolute Pressure Sensor

and Layout (Top view) 765 84 1 pin Mark 1 2 3 Pin No. Symbol Description 1 VPP OTP write enable * 2 VDD Power 3 VDDIO Digital I/O Power 4 TESTA Analog out for test * 5 RST Asynchronous reset 6 SCL I2C clock 7 SDA I2C data 8 GND Ground * These pins are for test pu.

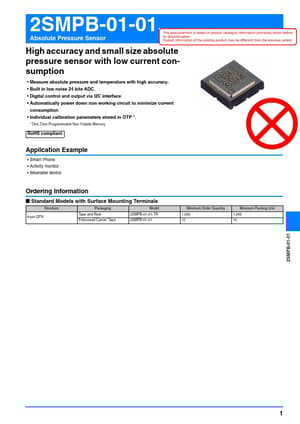

2SMPB-01-01 Absolute Pressure Sensor High accuracy and small size absolute pressure sensor with low current consumption Measure absolute pressure and temperature with high accuracy. Built in low noise 24 bits ADC. Digital control and output via I2C interface Automatically power down non working circuit to minimize current consumption Individual calibration parameters stored in OTP . One Time Programmable Non Volatile Memory RoHS compli.

2SMPB-01-01 Datasheet (2.63 MB)
