MSMP587 - High-speed High-preformance 16-bit Microcontroller

Product Overview

OKI

MSMP587 High-speed High-preformance 16-bit Microcontroller by OKI - Datasheet Preview — Datasheet preview – MSMP587

Datasheet Details

Part number	MSMP587
Manufacturer	OKI
File Size	254.99 KB
Description	High-speed High-preformance 16-bit Microcontroller
Datasheet	MSMP587 Datasheet
Note	This datasheet PDF includes multiple part numbers: MSMP587, MSMQ587. Please refer to the document for exact specifications by model.

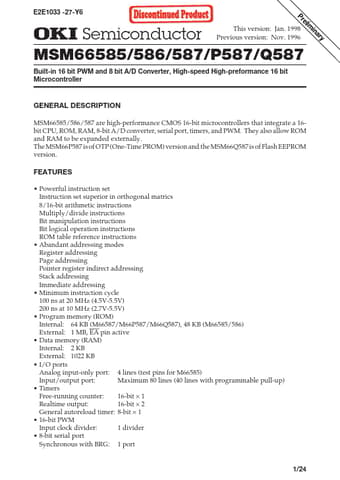

Additional preview pages of the MSMP587 datasheet.

Product details

Description

MSM66585/586/587 are high-performance CMOS 16-bit microcontrollers that integrate a 16bit CPU, ROM, RAM, 8-bit A/D converter, serial port, timers, and PWM.

Features

Powerful instruction set Instruction set superior in orthogonal matrics 8/16-bit arithmetic instructions Multiply/divide instructions Bit manipulation instructions Bit logical operation instructions ROM table reference instructions.
Abandant addressing modes Register addressing Page addressing Pointer register indirect addressing Stack addressing Immediate addressing.
Minimum instruction cycle 100 ns at 20 MHz (4.5V-5.5V) 200 ns at 10 MHz (2.7V-5.5V).
Program.
