MSM5265 - 80-DOT LCD DRIVER

Name: MSM5265
SKU: MSM5265-500164

OKI

📥 Download Datasheet

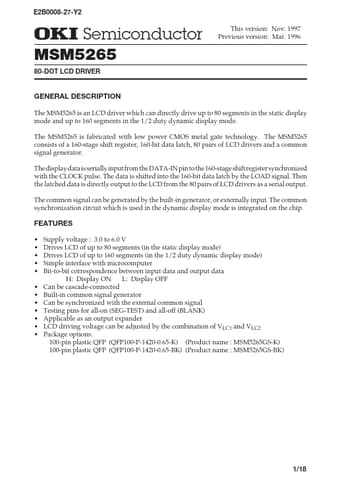

MSM5265 Datasheet Preview — Preview of MSM5265 PDF

Datasheet Details

Part number	MSM5265
Manufacturer	OKI
File Size	159.11 KB
Description	80-DOT LCD DRIVER
Datasheet	MSM5265_OKI.pdf

MSM5265 Product details

Description

The MSM5265 is an LCD driver which can directly drive up to 80 segments in the static display mode and up to 160 segments in the 1/2 duty dynamic display mode.

Features

Supply voltage : 3.0 to 6.0 V Drives LCD of up to 80 segments (in the static display mode) Drives LCD of up to 160 segments (in the 1/2 duty dynamic display mode) Simple interface with microcomputer Bit-to-bit correspondence between input data and output data H: Display ON L: Display OFF Can be cascade-connected Built-in common signal generator Can be synchronized with the exte.
