MSM5424331 - Field Memory

Product Overview

OKI electronic

Datasheet Details

Part number	MSM5424331
Manufacturer	OKI electronic
File Size	297.58 KB
Description	Field Memory
Datasheet	MSM5424331 Datasheet

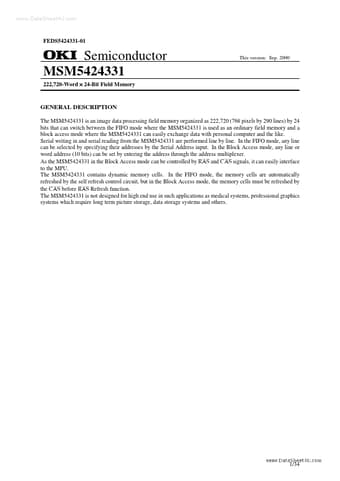

Additional preview pages of the MSM5424331 datasheet.

Product details

Description

The MSM5424331 is an image data processing field memory organized as 222,720 (768 pixels by 290 lines) by 24 bits that can switch between the FIFO mode where the MSM5424331 is used as an ordinary field memory and a block access mode where the MSM5424331 can easily exchange data with personal computer and the like.

Features

Switching between FIFO and Block Access modes by the D/F pin FIFO mode: Serial write/read operation by line-by-line accessing Block Access mode: Fast write/read operation on an 8-word basis by the RAS and CAS control.
Organization of 768 × 290 × 24 bits FIFO mode: Input × 12 or × 24 controlled by L/UWE Output × 24 Block Access mode: Input × 12 (Two 768 × 290 × 12-bit banks are controlled by L/UWE. ) Output × 12 (Two 768 × 290 × 12-bit banks are controlled by A9.).
