MSM5416258B - DYNAMIC RAM

Product Overview

OKI electronic

Datasheet Details

Part number	MSM5416258B
Manufacturer	OKI electronic
File Size	187.08 KB
Description	DYNAMIC RAM
Datasheet	MSM5416258B Datasheet

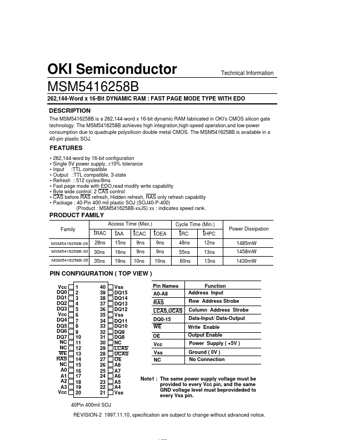

Additional preview pages of the MSM5416258B datasheet.

Product details

Description

Technical Information 262,144-Word x 16-Bit DYNAMIC RAM : FAST PAGE MODE TYPE WITH EDO The MSM5416258B is a 262,144-word x 16-bit dynamic RAM fabricated in OKI's CMOS silicon gate technology.The MSM5416258B achieves high integration,high-speed operation,and low-power consumption due to quadruple polysilicon double metal CMOS.The MSM5416258B is available in a 40-pin plastic SOJ.

Features

262,144-word by 16-bit configuration.
Single 5V power supply, ±10% tolerance.
Input :TTL compatible.
Output :TTL compatible, 3-state.
Refresh : 512 cycles/8ms.
Fast page mode with EDO,read modify write capability.
Byte wide control: 2 CAS control.
CAS before RAS refresh, Hidden refresh, RAS only refresh capability.
Package : 40-Pin 400 mil plastic SOJ (SOJ40-P-400) (Product : MSM5416258B-xxJS) xx : indicates speed.
