MSM13Q - (MSM13Q / MSM14Q) Sea of Gates Arrays

OKI electronic

📥 Download Datasheet

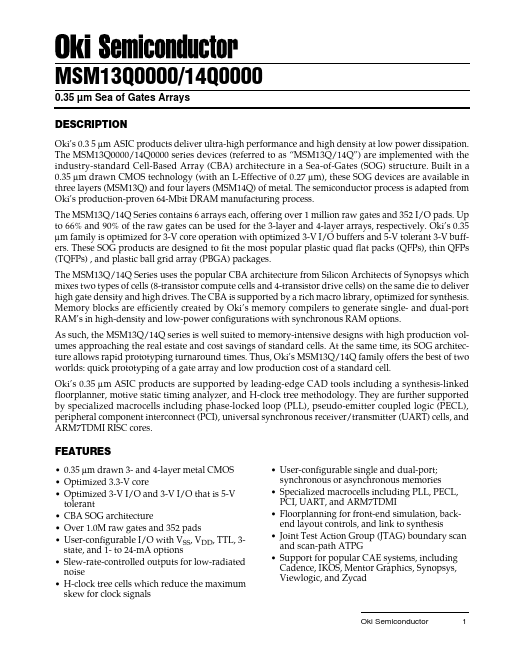

MSM13Q Datasheet Preview — Preview of MSM13Q PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MSM13Q
Manufacturer	OKI electronic
File Size	242.83 KB
Description	(MSM13Q / MSM14Q) Sea of Gates Arrays
Datasheet	MSM13Q_OKIelectronic.pdf

MSM13Q Product details

Description

Oki’s 0.3 5 µm ASIC products deliver ultra-high performance and high density at low power dissipation.

Features

0.35 µm drawn 3- and 4-layer metal CMOS.
Optimized 3.3-V core.
Optimized 3-V I/O and 3-V I/O that is 5-V tolerant.
CBA SOG architecture.
Over 1.0M raw gates and 352 pads.
User-configurable I/O with VSS, VDD, TTL, 3state, and 1- to 24-mA options.
Slew-rate-controlled outputs for low-radiated noise.
H-clock tree cells which reduce the maximum skew for clock signals.
User-configurable single and dual-port; synchronous.
