ML9207-xx - 5 x 7 Dot Character x 24-Digit Display Controller/Driver

Product Overview

OKI electronic

Part number	ML9207-xx
Manufacturer	OKI electronic
File Size	523.66 KB
Description	5 x 7 Dot Character x 24-Digit Display Controller/Driver
Datasheet	ML9207-xx Datasheet

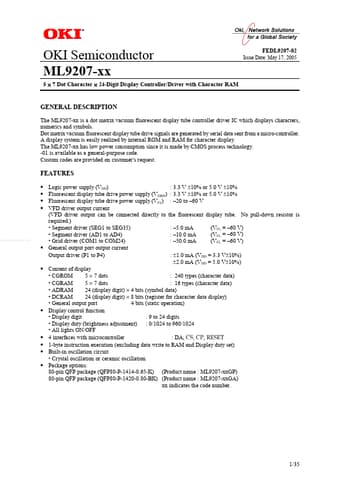

Additional preview pages of the ML9207-xx datasheet.

The ML9207-xx is a dot matrix vacuum fluorescent display tube controller driver IC which displays characters, numerics and symbols.

: 3.3 V ±10% or 5.0 V ±10% Logic power supply (VDD) Fluorescent display tube drive power supply (VDISP) : 3.3 V ±10% or 5.0 V ±10% Fluorescent display tube drive power supply (VFL) :.
20 to.
60 V VFD driver output current (VFD driver output can be connected directly to the fluorescent display tube. No pull-down resistor is required. ).
Segment driver (SEG1 to SEG35) :.
5.0 mA (VFL =.
60 V).
Segment driver (A.
