ML670100 - High-Performance CMOS 32-Bit Single Chip Microcontroller

OKI electronic

The ML670100 by OKI electronic is a High-Performance CMOS 32-Bit Single Chip Microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

ML670100 High-Performance CMOS 32-Bit Single Chip Microcontroller by OKI electronic - Datasheet Preview — Official preview page of the **ML670100** High-Performance CMOS 32-Bit Single Chip Microcontroller datasheet (OKI electronic).

Datasheet Details

Part number	ML670100
Manufacturer	OKI electronic
File Size	160.46 KB
Description	High-Performance CMOS 32-Bit Single Chip Microcontroller
Datasheet	ML670100_OKIelectronic.pdf

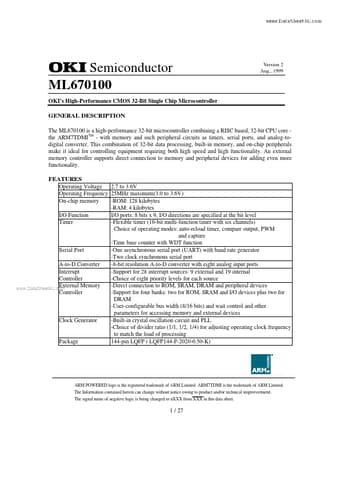

Additional preview pages of the ML670100 datasheet.

ML670100 Product details

Description

The ML670100 is a high-performance 32-bit microcontroller combining a RISC based, 32-bit CPU core the ARM7TDMITM - with memory and such peripheral circuits as timers, serial ports, and analog-todigital converter.

Features

Operating Voltage 2.7 to 3.6V Operating Frequency 25MHz maximum(3.0 to 3.6V) On-chip memory -ROM: 128 kilobytes -RAM: 4 kilobytes I/O Function I/O ports: 8 bits x 9, I/O directions are specified at the bit level Timer -Flexible timer (16-bit multi-function timer with six channels) Choice of operating modes: auto-reload timer, compare output, PWM and capture -Time base counter with WDT function Serial Port -One asynchronous serial port (UART) with baud rate generator -Two clock synchronous serial.
