MSM82C51A-2RS, MSM82C51A-2GS - UNIVERSAL SYNCHRONOUS ASYNCHRONOUS RECEIVER TRANSMITTER

OKI electronic componets

📥 Download Datasheet

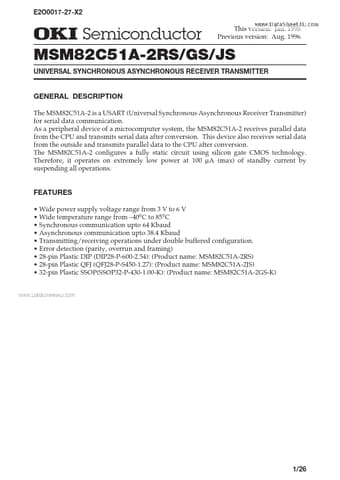

MSM82C51A-2RS Datasheet Preview — This datasheet PDF includes multiple part numbers: MSM82C51A-2RS, MSM82C51A-2GS. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MSM82C51A-2RS, MSM82C51A-2GS
Manufacturer	OKI electronic componets
File Size	253.94 KB
Description	UNIVERSAL SYNCHRONOUS ASYNCHRONOUS RECEIVER TRANSMITTER
Datasheet	MSM82C51A-2GS_OKIelectroniccomponets.pdf
Note	This datasheet PDF includes multiple part numbers: MSM82C51A-2RS, MSM82C51A-2GS. Please refer to the document for exact specifications by model.

MSM82C51A-2RS Product details

Description

The MSM82C51A-2 is a USART (Universal Synchronous Asynchronous Receiver Transmitter) for serial data communication.

Features

Wide power supply voltage range from 3 V to 6 V.
Wide temperature range from.
40°C to 85°C.
Synchronous communication upto 64 Kbaud.
Asynchronous communication upto 38.4 Kbaud.
Transmitting/receiving operations under double buffered configuration.
Error detection (parity, overrun and framing).
28-pin Plastic DIP (DIP28-P-600-2.54): (Product name: MSM82C51A-2RS).
28-pin Plastic QFJ (QFJ28-P-S450-1.27): (Product name.
