MSM6882-5 - (MSM6882-3/-5) 2400/1200 bps Single Chip MSK Modem

Product Overview

OKI electronic componets

Datasheet Details

Part number	MSM6882-5
Manufacturer	OKI electronic componets
File Size	119.87 KB
Description	(MSM6882-3/-5) 2400/1200 bps Single Chip MSK Modem
Datasheet	MSM6882-5 Datasheet
Note	This datasheet PDF includes multiple part numbers: MSM6882-5, MSM6882-3. Please refer to the document for exact specifications by model.
Additional preview pages of the MSM6882-5 datasheet.

Product details

Description

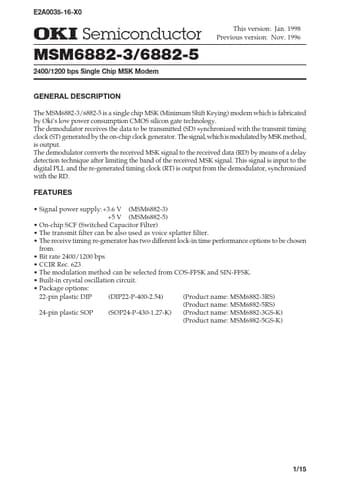

The MSM6882-3/6882-5 is a single chip MSK (Minimum Shift Keying) modem which is fabricated by Oki’s low power consumption CMOS silicon gate technology.

Features

Signal power supply:+3.6 V (MSM6882-3) +5 V (MSM6882-5).
On-chip SCF (Switched Capacitor Filter).
The transmit filter can be also used as voice splatter filter.
The receive timing re-generator has two different lock-in time performance options to be chosen from.
Bit rate 2400/1200 bps.
CCIR Rec. 623.
The modulation method can be selected from COS-FFSK and SIN-FFSK.
Built-in crystal oscillation circuit.
Package.
