MSM65354 - 8-Bit Microcontroller

Description

This MSM65354/65353A version: Jan.

1998 Previous version: Nov.

The MSM65354/MSM65353A is a high performance 8-bit microcontroller that employs OKI original CPU core nX-8/50.

Features

  • Operating range Operating voltage Operating temperature Operating frequency (dual clock) High speed side Low speed side Current consumption (Typ. ) High speed side : : : : : 2.7V to 5.5V.
  • 20°C to +70°C 0 to 10MHz (@VDD=5V± 10%) 0 to 5MHz (@VDD=2.7V to 5.5V) 32.768kHz (@VDD=2.7V to 5.5V) 5mA (@5MHz, VDD=3V) 20mA (@10MHz, VDD=5V) 1.5mA (@5MHz, VDD=3V, Halt mode) 4mA (VDD=3V), Stop mode) 45mA (@32.768kHz, VDD=3V) 400ns (@10MHz), 800ns (@5MHz) 8-bit CPU core nX-8/50 24K-byte program.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MSM6502B (MSM6502B / MSM6512) Low-power and Built-in LCD Driver 4-Bit Microcontroller OKI electronic
MSM6512 (MSM6502B / MSM6512) Low-power and Built-in LCD Driver 4-Bit Microcontroller OKI electronic
MSM6524GS-VK C-MOS 12 CHANNELS 8-BITS D-A CONVERTER ETC
MSM6051 Built-in Melody Circuit and LCD Driver 4-Bit Microcontroller OKI electronic
MSM6052-xx Tone / Pulse Switchable Repertory Dialer OKI

Other Datasheets by OKI Electric

Part Number Description
MSM65352 8-Bit Microcontroller
MSM65352B 8-Bit Microcontroller
MSM65353A 8-Bit Microcontroller
MSM65355 8-Bit Microcontroller
MSM65344A 8-Bit Microcontroller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

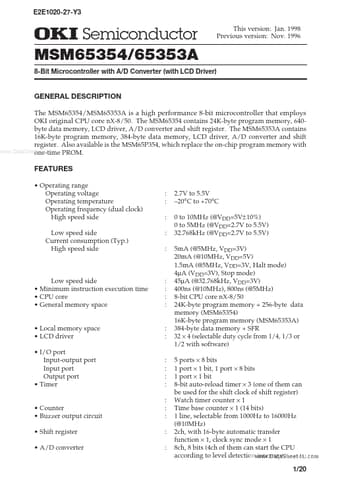

E2E1020-27-Y3 ¡ Semiconductor ¡ Semiconductor MSM65354/65353A GENERAL DESCRIPTION This MSM65354/65353A version: Jan. 1998 Previous version: Nov. 1996 8-Bit Microcontroller with A/D Converter (with LCD Driver) The MSM65354/MSM65353A is a high performance 8-bit microcontroller that employs OKI original CPU core nX-8/50. The MSM65354 contains 24K-byte program memory, 640byte data memory, LCD driver, A/D converter and shift register. The MSM65353A contains 16K-byte program memory, 384-byte data memory, LCD driver, A/D converter and shift register. Also available is the MSM65P354, which replace the on-chip program memory with www.DataSheet4U.com one-time PROM.
