MSM65352 - 8-Bit Microcontroller

Description

ThisMSM65352/65352B version: Jan.

1998 Previous version: Nov.

The MSM65352 is a high performance 8-bit microcontroller that employs OKI original CPU core, the nX-8/50.

Features

  • 2.7V to 5.5V.
  • 20°C to +70°C High speed side 0 to 10MHz (@VDD=5V± 10%) 0 to 5MHz (@VDD=2.7V to 5.5V) Low speed side 32.768kHz (@VDD=2.7V to 5.5V).
  • Current consumption (Typ. ): High speed side 5mA (@5MHz, VDD=3V) 20mA (@10MHz, VDD=5V) 1.5mA (@5MHz, VDD=3V, halt mode) Low speed side : 45mA (@32.768kHz, VDD=3V) 4mA (@VDD=3V, stop mode).
  • Minimum instruction execution time : 400ns (@10MHz), 800ns (@5MHz).
  • CPU core : 8-bit CPU core nX-8/50.
  • General memory spac.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MSM6502B (MSM6502B / MSM6512) Low-power and Built-in LCD Driver 4-Bit Microcontroller OKI electronic
MSM6512 (MSM6502B / MSM6512) Low-power and Built-in LCD Driver 4-Bit Microcontroller OKI electronic
MSM6524GS-VK C-MOS 12 CHANNELS 8-BITS D-A CONVERTER ETC
MSM6051 Built-in Melody Circuit and LCD Driver 4-Bit Microcontroller OKI electronic
MSM6052-xx Tone / Pulse Switchable Repertory Dialer OKI

Other Datasheets by OKI Electric

Part Number Description
MSM65352B 8-Bit Microcontroller
MSM65353A 8-Bit Microcontroller
MSM65354 8-Bit Microcontroller
MSM65355 8-Bit Microcontroller
MSM65344A 8-Bit Microcontroller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

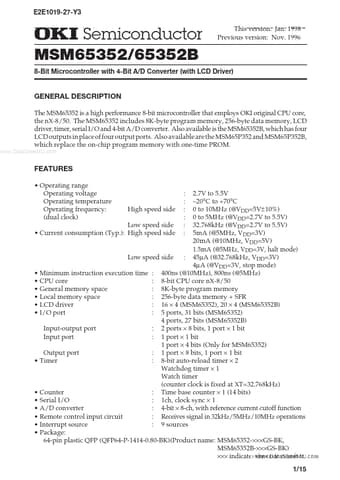

E2E1019-27-Y3 ¡ Semiconductor ¡ Semiconductor MSM65352/65352B GENERAL DESCRIPTION ThisMSM65352/65352B version: Jan. 1998 Previous version: Nov. 1996 8-Bit Microcontroller with 4-Bit A/D Converter (with LCD Driver) The MSM65352 is a high performance 8-bit microcontroller that employs OKI original CPU core, the nX-8/50. The MSM65352 includes 8K-byte program memory, 256-byte data memory, LCD driver, timer, serial I/O and 4-bit A/D converter. Also available is the MSM65352B, which has four LCD outputs in place of four output ports. Also available are the MSM65P352 and MSM65P352B, which replace the on-chip program memory with one-time PROM. www.DataSheet4U.com FEATURES 2.7V to 5.5V –20°C to +70°C High speed side 0 to 10MHz (@VDD=5V± 10%) 0 to 5MHz (@VDD=2.7V to 5.5V) Low speed side 32.
