MSM514252A - DRAM / FAST PAGE MODE TYPE

Name: MSM514252A
SKU: MSM514252A-505574

OKI electronic componets

📥 Download Datasheet

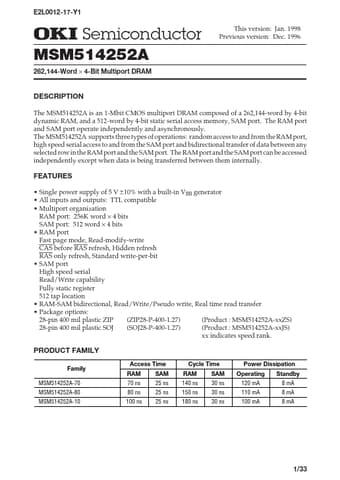

MSM514252A Datasheet Preview — Preview of MSM514252A PDF

Datasheet Details

Part number	MSM514252A
Manufacturer	OKI electronic componets
File Size	358.04 KB
Description	DRAM / FAST PAGE MODE TYPE
Datasheet	MSM514252A_OKI.pdf

MSM514252A Product details

Description

The MSM514252A is an 1-Mbit CMOS multiport DRAM composed of a 262,144-word by 4-bit dynamic RAM, and a 512-word by 4-bit static serial access memory, SAM port.

Features

Single power supply of 5 V ± 10% with a built-in VBB generator.
All inputs and outputs: TTL compatible.
Multiport organization RAM port: 256K word.
4 bits SAM port: 512 word.
4 bits.
RAM port Fast page mode, Read-modify-write CAS before RAS refresh, Hidden refresh RAS only refresh, Standard write-per-bit.
SAM port High speed serial Read/Write capability Fully static register 512 tap location.
RAM-SAM bidirectional, Read/Write/Pseud.
