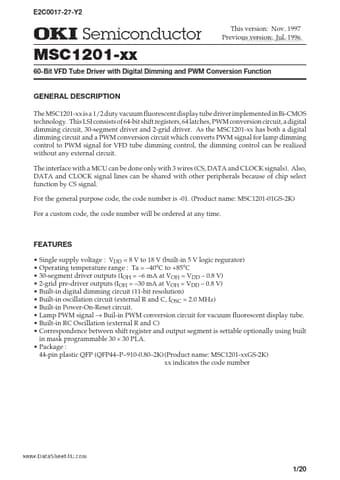

MSC1201-XX 60-Bit VFD Tube Driver by OKI electronic componets - Datasheet Preview — Official preview page of the MSC1201-XX 60-Bit VFD Tube Driver datasheet (OKI electronic componets).

Datasheet Details

Part number	MSC1201-XX
Manufacturer	OKI electronic componets
File Size	170.97 KB
Description	60-Bit VFD Tube Driver
Datasheet	MSC1201-XX_OKIelectroniccomponets.pdf
Additional preview pages of the MSC1201-XX datasheet.

MSC1201-XX Product details

Description

The MSC1201-xx is a 1/2 duty vacuum fluorescent display tube driver implemented in Bi-CMOS technology.

Features

Single supply voltage : VDD = 8 V to 18 V (built-in 5 V logic regurator).
Operating temperature range : Ta =.
40°C to +85°C.
30-segment driver outputs (IOH =.
6 mA at VOH = VDD.
0.8 V).
2-grid pre-driver outputs (IOH =.
30 mA at VOH = VDD.
0.8 V).
Built-in digital dimming circuit (11-bit resolution).
Built-in oscillation circuit (external R and C, fOSC = 2.0 MHz).
Built-in Power-On-Reset cir.
