MR26V25655J 8M-Word x 32Bit or 64M-Word x 16Bit P2ROM

MR26V25655J Description

OKI Semiconductor MR26V25655J 8M *Word × 32 *Bit or 16M *Word × 16 *Bit Page Mode FEDR26V25655J-02-05 Issue Date: Jun.8,.
Pin name D31 / A. 1,D30/A-1 A0 to A22 D0 to D29 CE# OE# WORD# VCC VSS Address inputs Data outputs Chip enable input Output enable input Word -.

MR26V25655J Features

* 8,388,608-word × 32-bit/16,777,216-word × 16-bit electrically switchable configuration
* Page size of 8-word x 32-Bit or 16-word x 16-Bit
* 3.0 V to 3.6 V power supply
* Random Access time 120 ns MAX
* Page Access time 35 ns MAX
* Operating current 100 mA MAX
* Standby curr

MR26V25655J Applications

* (e. g. , office automation, communication equipment, measurement equipment, consumer electronics, etc. ). These products are not, unless specifically authorized by Oki, authorized for use in any system or application that requires special or enhanced quality and reliability characteristics nor in any s

📥 Download Datasheet

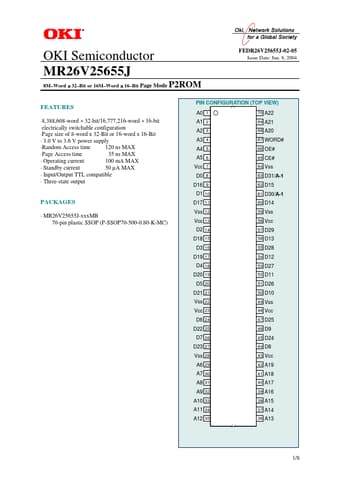

Preview of MR26V25655J PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MR26V25655J
Manufacturer
OKI Semiconductor
File Size
86.87 KB
Datasheet
MR26V25655J_OKISemiconductor.pdf
Description
8M-Word x 32Bit or 64M-Word x 16Bit P2ROM
