NAND04GW3B2B - NAND Flash Memories

NAND04GW3B2B Description

NAND04GW3B2B NAND08GW3B2A 4 Gbit, 8 Gbit, 2112 Byte/1056 Word Page 3V, NAND Flash Memories .

NAND04GW3B2B Features

* High density NAND Flash Memory
* up to 8 Gbit memory array
* Up to 256 Mbit spare area

NAND04GW3B2B Applications

* NAND Interface
* x8 bus width
* Multiplexed Address/ Data
* Supply voltage
* 3.0V device: VDD = 2.7 to 3.6V
* Page size
* (2048 + 64 spare) Bytes
* Block size
* (128K + 4K spare) Bytes
* Page Read/Program
* Random access: 25µs (ma

📥 Download Datasheet

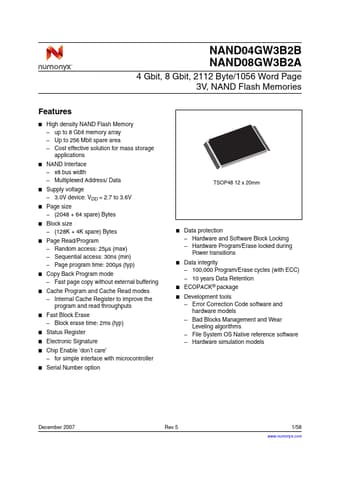

Preview of NAND04GW3B2B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NAND04GW3B2B
Manufacturer
Numonyx
File Size
756.11 KB
Datasheet
NAND04GW3B2B-Numonyx.pdf
Description
NAND Flash Memories
