M29W160FT - 3V supply Flash memory

Name: M29W160FT
SKU: M29W160FT-941607

Numonyx

The M29W160FT by Numonyx is a 3V supply Flash memory. Below is the official datasheet preview.

Datasheet Details

Part number	M29W160FT
Manufacturer	Numonyx
File Size	795.89 KB
Description	3V supply Flash memory
Datasheet	M29W160FT-Numonyx.pdf

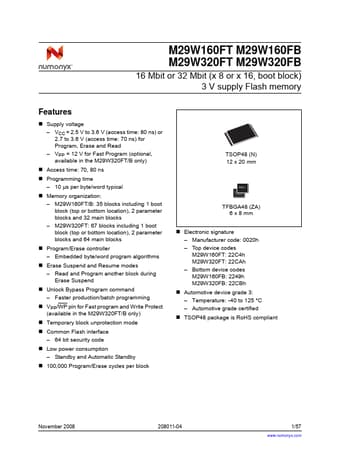

Additional preview pages of the M29W160FT datasheet.

. . . . .

Supply voltage.
VCC = 2.5 V to 3.6 V (access time: 80 ns) or 2.7 to 3.6 V (access time: 70 ns) for Program, Erase and Read.
VPP = 12 V for Fast Program (optional, available in the M29W320FT/B only).
Access time: 70, 80 ns.
Programming time.
10 μs per byte/word typical.
Memory organization:.
M29W160FT/B: 35 blocks including 1 boot block (top or bottom location), 2 parameter blocks and 32 main blocks.
M29W320FT: 67 b.
