NT3882 - Dot Matrix LCD 40-Channel Driver

Product Overview

Novatek

📥 Download Datasheet

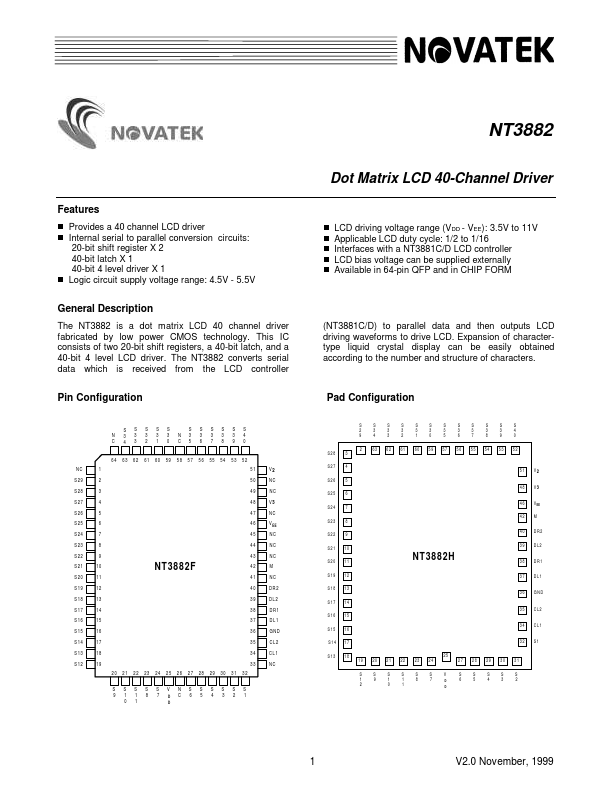

NT3882 Dot Matrix LCD 40-Channel Driver by Novatek - Datasheet Preview — Datasheet preview – NT3882

Datasheet Details

Part number	NT3882
Manufacturer	Novatek
File Size	86.59 KB
Description	Dot Matrix LCD 40-Channel Driver
Datasheet	NT3882 Datasheet

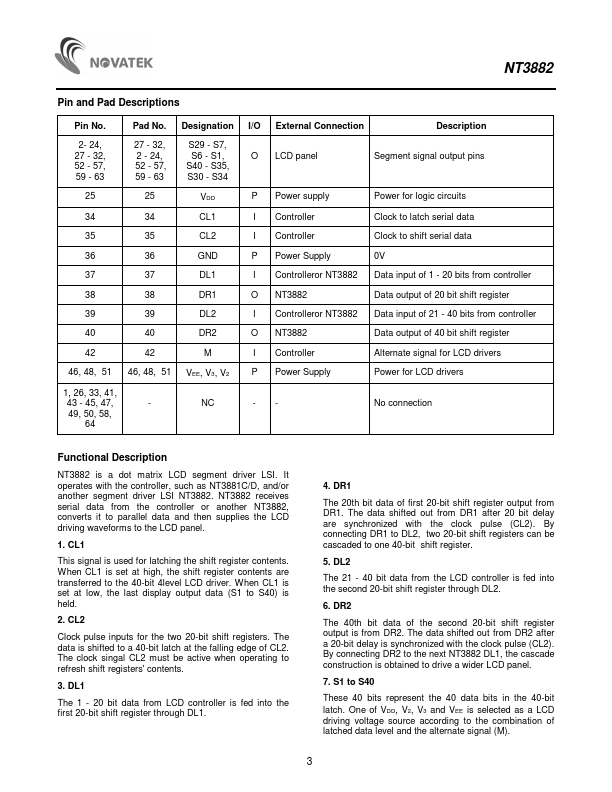

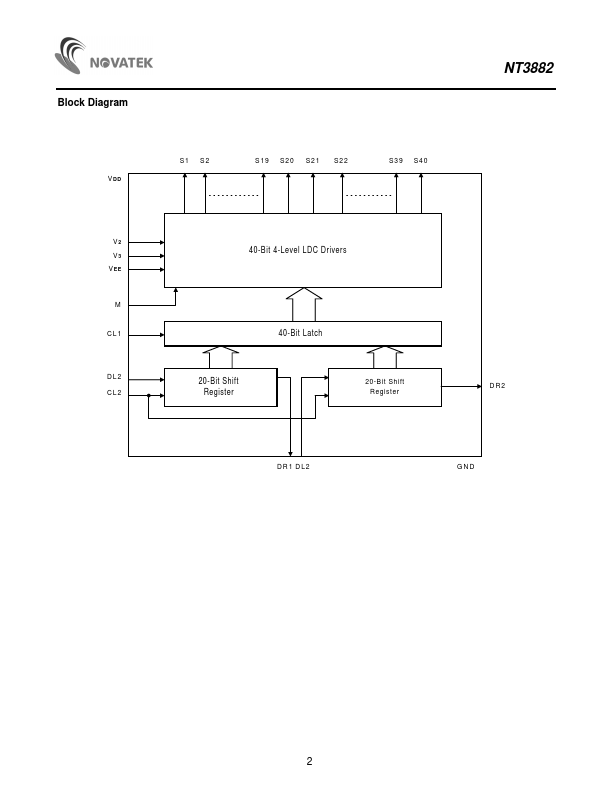

Additional preview pages of the NT3882 datasheet.

Product details

Description

The NT3882 is a dot matrix LCD 40 channel driver fabricated by low power CMOS technology.

Features

T Provides a 40 channel LCD driver T Internal serial to parallel conversion circuits: 20-bit shift register X 2 40-bit latch X 1 40-bit 4 level driver X 1 T Logic circuit supply voltage range: 4.5V - 5.5V General.
