nRF905 - Single chip 433/868/915MHz Transceiver

Description

Attention!

Observe precaution for handling Electrostatic Sensitive Device.

Features

  • True single chip GFSK transceiver in a small 32 pin package (32L QFN 5x5mm) ShockBurst™ mode for low power operation Power supply range 1.9 to 3.6 V Multi channel operation.
  • ETSI/FCC Compatible Channel switching time.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NRF0433 Single chip 433MHz RF Transceiver ETC
NRF0433-IC Single chip 433MHz RF Transceiver ETC
NRF2402 2.4Ghz Transmitter Nordic Semiconductor
nRF24E1 RF Transceiver Nordic Semiconductor
nRF24E2 RF Transceiver Nordic Semiconductor

Other Datasheets by Nordic Semiconductor

Part Number Description
nRF902 Single chip 868 MHz Transmitter
nRF9151 Microcontroller
nRF9160 Low power cellular IoT
nRF9161 Low power IoT
nRF9E5 433/868/915MHz RF Transceiver

Full PDF Text Transcription

Click to expand full text

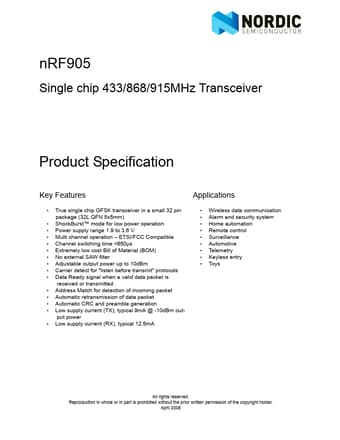

nRF905 Single chip 433/868/915MHz Transceiver Product Specification Key Features • • • • • • • • • • • • • • • True single chip GFSK transceiver in a small 32 pin package (32L QFN 5x5mm) ShockBurst™ mode for low power operation Power supply range 1.9 to 3.6 V Multi channel operation – ETSI/FCC Compatible Channel switching time <650µs Extremely low cost Bill of Material (BOM) No external SAW filter Adjustable output power up to 10dBm Carrier detect for "listen before transmit" protocols Data Ready signal when a valid data packet is received or transmitted Address Match for detection of incoming packet Automatic retransmission of data packet Automatic CRC and preamble generation Low supply current (TX), typical 9mA @ -10dBm output power Low supply current (RX), typical 12.
