nRF24AP1 - Single chip 2.4 GHz Transceiver

Nordic

📥 Download Datasheet

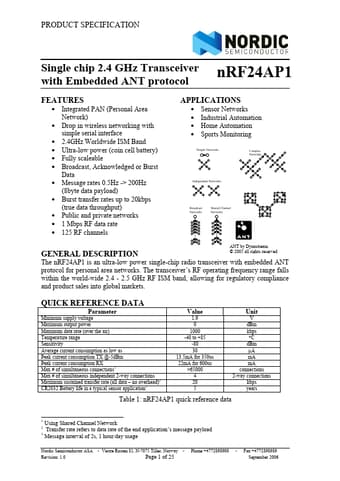

nRF24AP1 Datasheet Preview — Preview of nRF24AP1 PDF

Datasheet Details

Part number	nRF24AP1
Manufacturer	Nordic
File Size	380.73 KB
Description	Single chip 2.4 GHz Transceiver
Datasheet	nRF24AP1-Nordic.pdf

nRF24AP1 Product details

Description

ANT by Dynastream © 2005 all rights reserved The nRF24AP1 is an ultra-low power single-chip radio transceiver with embedded ANT protocol for personal area networks.The transceiver’s RF operating frequency range falls within the world-wide 2.4 - 2.5 GHz RF ISM band, allowing for regulatory compliance and product sales into global markets.QUICK REFERENCE DATA Parameter Minimum supply voltage Maximum output power Maximum data rate (over the air) Temperature range Sensitivity Average current

Features

Integrated PAN (Personal Area Network).
Drop in wireless networking with simple serial interface.
2.4GHz Worldwide ISM Band.
Ultra-low power (coin cell battery).
Fully scaleable.
Broadcast, Acknowledged or Burst Data.
Message rates 0.5Hz -> 200Hz (8byte data payload).
Burst transfer rates up to 20kbps (true data throughput).
Public and private networks.
1 Mbps RF data rate.
125 RF channels APPLIC.
