RP904Z - PWM/PFM step-down DC/DC Converters

RP904Z Description

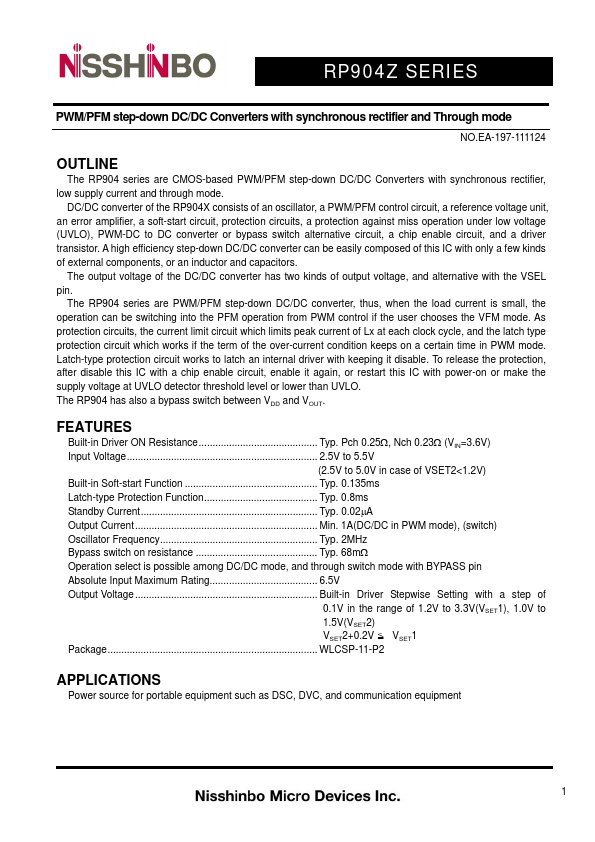

RP904Z SERIES PWM/PFM step-down DC/DC Converters with synchronous rectifier and Through mode NO.EA-197-111124 OUTLINE The RP904 series are CMOS-based .

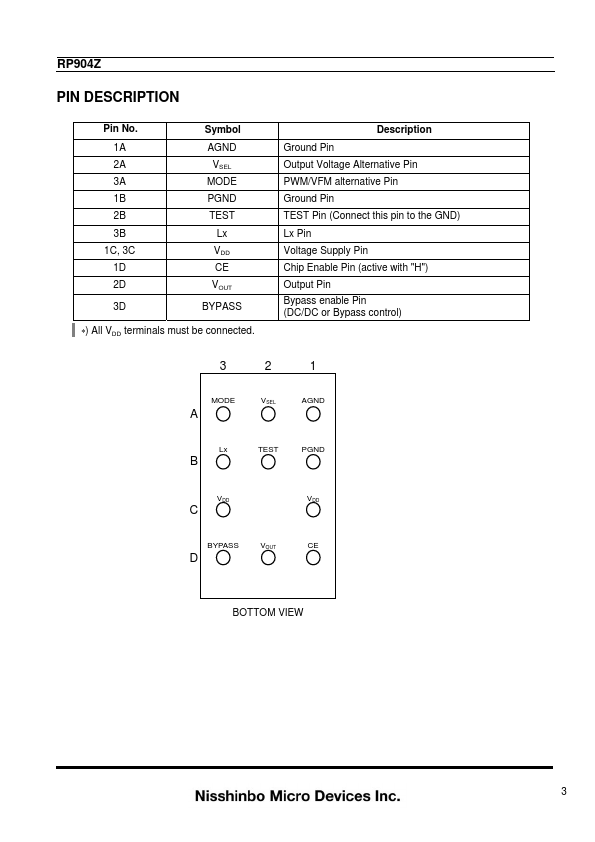

Pin No.

RP904Z Features

* Built-in Driver ON Resistance Typ. Pch 0.25Ω, Nch 0.23Ω (VIN=3.6V) Input Voltage 2.5V to 5.5V (2.5V to 5.0V in case of VSET2

RP904Z Applications

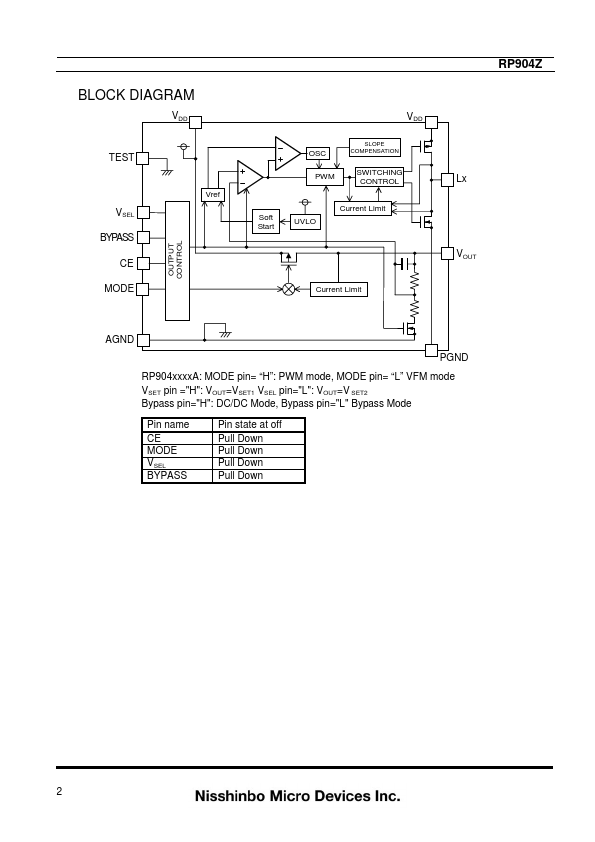

* Power source for portable equipment such as DSC, DVC, and communication equipment 1 BLOCK DIAGRAM VDD TEST Vref VSEL BYPASS CE MODE OUTPUT CONTROL RP904Z VDD OSC PWM SLOPE COMPENSATION SWITCHING CONTROL Soft Start UVLO Current Limit Current Limit Lx VOUT AGND PGND RP904xxxxA: MODE pin= “

📥 Download Datasheet

Preview of RP904Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP904Z
Manufacturer
Nisshinbo
File Size
736.78 KB
Datasheet
RP904Z-Nisshinbo.pdf
Description
PWM/PFM step-down DC/DC Converters
