RP605Z - 300mA Ultra-low Power Buck Boost DC/DC Converter

The RP605Z by Nisshinbo is a 300mA Ultra-low Power Buck Boost DC/DC Converter. Below is the official datasheet preview.

📥 Download Datasheet

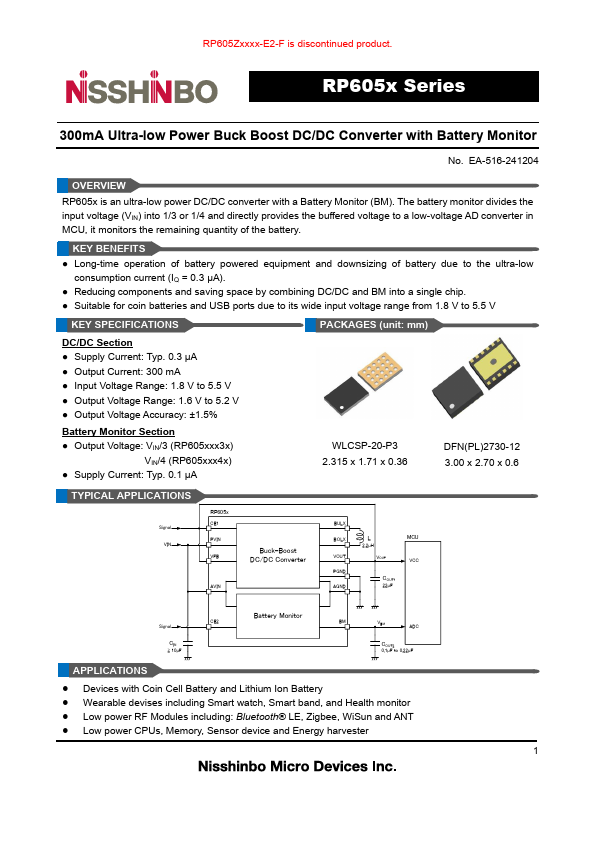

Official preview page of the RP605Z 300mA Ultra-low Power Buck Boost DC/DC Converter datasheet (Nisshinbo).

Datasheet Details

Part number RP605Z
Manufacturer Nisshinbo
File Size 1.52 MB
Description 300mA Ultra-low Power Buck Boost DC/DC Converter
Datasheet download datasheet RP605Z-Nisshinbo.pdf

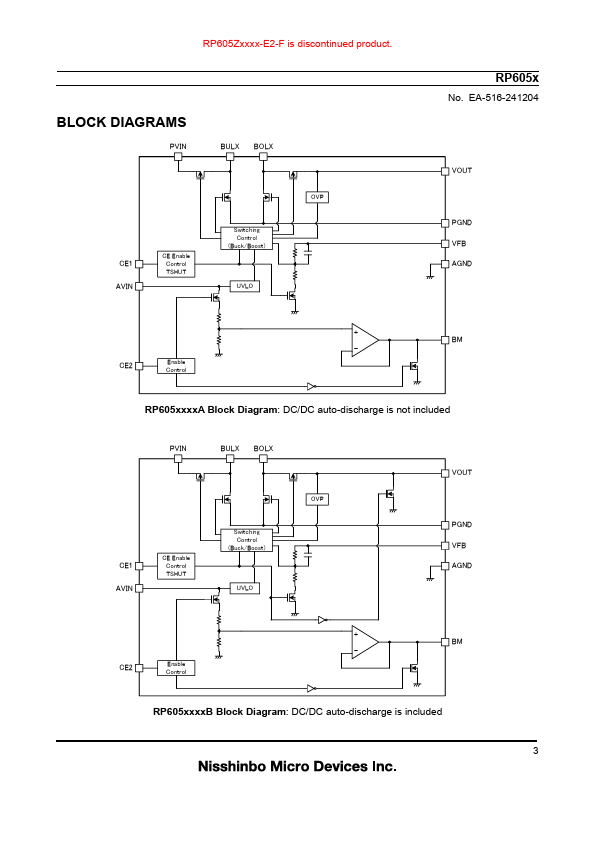

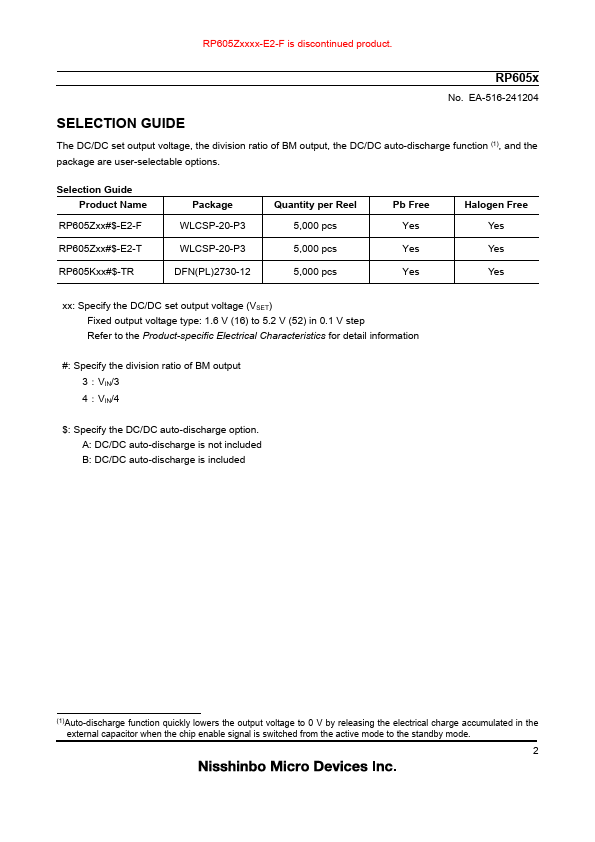

Additional preview pages of the RP605Z datasheet.

RP605Z Product details

Description

Top View Bottom View RP605x No.EA-516-241204 RP605Z (WLCSP-20-P3) Pin Configuration RP605Z Pin Description Pin No.Symbol A5, B5 VOUT A4, B4, C4 BOLX A3, B3, C3 PGND A2, B2, C2 BULX A1, B1, C1 PVIN C5 VFB D1 AVIN D2 CE1 D3 AGND D4 CE2 D5 BM Description DC/DC Output Pin Boost Switching Output LX Pin Power Ground Pin Buck Switching Output LX Pin Power Source Input Pin Feedback Pin Analog Power Supply Pin DC/DC Enable Pin (Active-high) Analog Ground Pin Battery Monito
