RP200K - 3-MODE 300mA LDO REGULATOR

RP200K Description

RP200Q (SC-88A) is the discontinued product as of January 2017.RP200Z(WLCSP-4-P5) is the discontinued product as of April, 2023 RP200x SERIES 3-MODE.
Input Pin Output Pin Chip Enable Pin ("H" Active) Grou.

RP200K Features

* Supply Current (Low power Mode) Typ. 1.0µA (VOUT ≤ 1.85V)
* Supply Current (Fast Mode) Typ. 55µA
* Supply Current (Standby Mode) Typ. 0.1 µA
* Ripple Rejection Typ. 70dB (f=1kHz)
* Input Voltage Range 1.4V to 5.25V
* Output Voltage Range 0.8V to

RP200K Applications

* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.
* Power source for battery-powered equipment. 1 RP200Q (SC-88A) is the discontinued product as of January 2017. RP200Z(WLCSP-4-P5) is the disc

📥 Download Datasheet

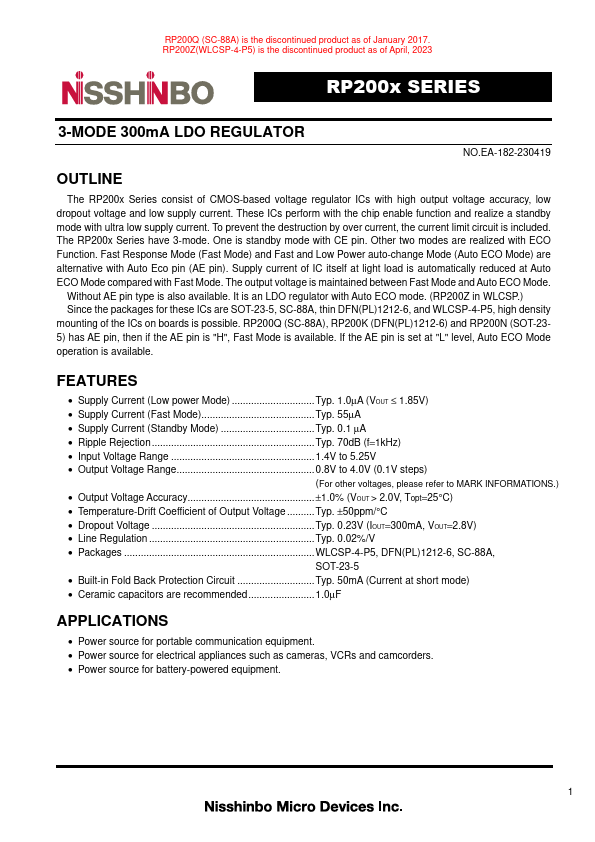

Preview of RP200K PDF

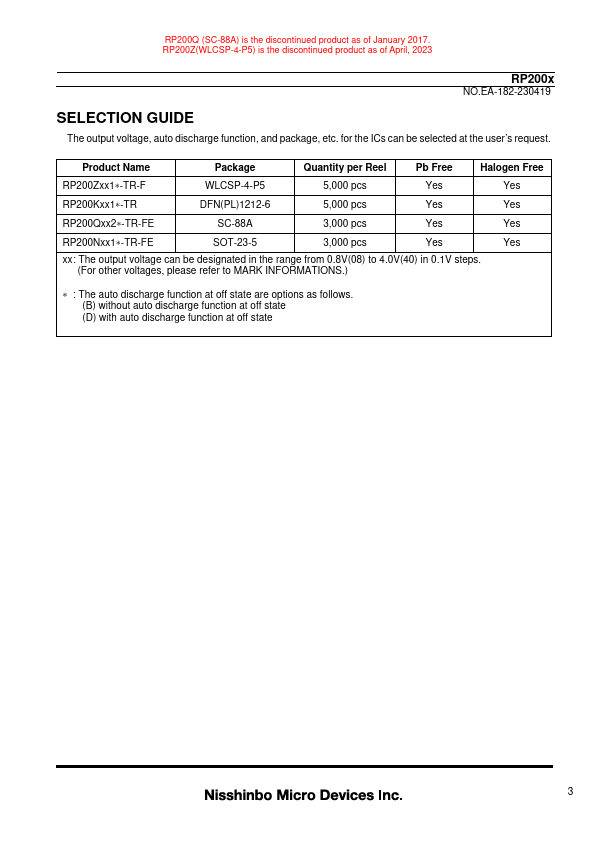

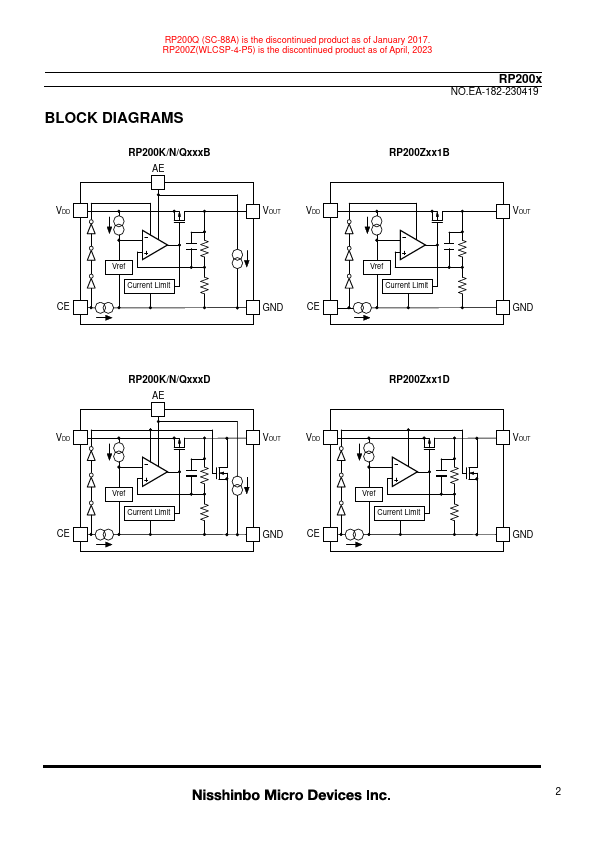

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP200K
Manufacturer
Nisshinbo
File Size
446.79 KB
Datasheet
RP200K-Nisshinbo.pdf
Description
3-MODE 300mA LDO REGULATOR
