RP170N - 300mA 10V Input LDO Regulator

Nisshinbo

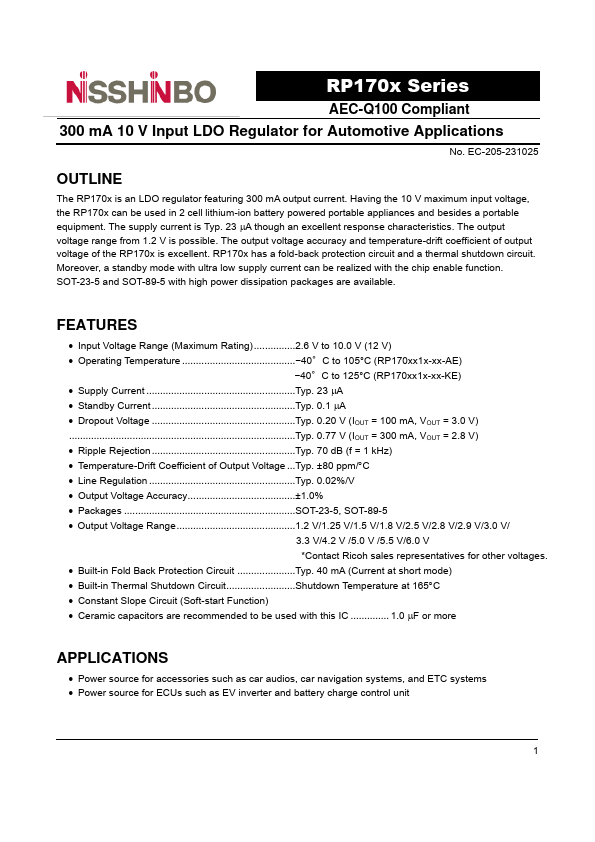

The RP170N by Nisshinbo is a 300mA 10V Input LDO Regulator. Below is the official datasheet preview.

📥 Download Datasheet

RP170N 300mA 10V Input LDO Regulator by Nisshinbo - Datasheet Preview — Official preview page of the **RP170N** 300mA 10V Input LDO Regulator datasheet (Nisshinbo).

Datasheet Details

Part number	RP170N
Manufacturer	Nisshinbo
File Size	1.15 MB
Description	300mA 10V Input LDO Regulator
Datasheet	RP170N-Nisshinbo.pdf
Additional preview pages of the RP170N datasheet.

RP170N Product details

Description

5 4 (mark side) RP170x No.EC-205-231025 5 4 123 SOT-23-5 Pin Configuration 1 2 3 SOT-89-5 Pin Configuration SOT-23-5 Pin Description Pin No Symbol 1 VDD 2 GND 3 CE 4 NC 5 VOUT SOT-89-5 Pin Description Pin No Symbol 1 VOUT 2 GND 3 CE 4 NC 5 VDD Pin Description Input Pin Ground Pin Chip Enable Pin (Active-high) No Connection Output Pin Pin Description Output Pin Ground Pin Chip Enable Pin (Active-high) No Connection Input Pin 4 ABSOLUTE MAXIMUM RATINGS RP

Features

Input Voltage Range (Maximum Rating) 2.6 V to 10.0 V (12 V).
Operating Temperature.
40°C to 105°C (RP170xx1x-xx-AE).
40°C to 125°C (RP170xx1x-xx-KE).
Supply Current Typ. 23 A.
Standby Current Typ. 0.1 A.
Dropout Voltage Typ. 0.20 V (IOUT = 100 mA, VOUT = 3.0 V) Typ. 0.77 V (IOUT = 300 mA, VOUT = 2.8 V).
Ripple Rejection Typ. 70 dB (f = 1 kHz).
Temperature-Drift Coefficient of Output Voltage Typ. ±80 ppm/C.
