RP124L - 100mA Ultra-low Supply Current LDO Regulator

RP124L Description

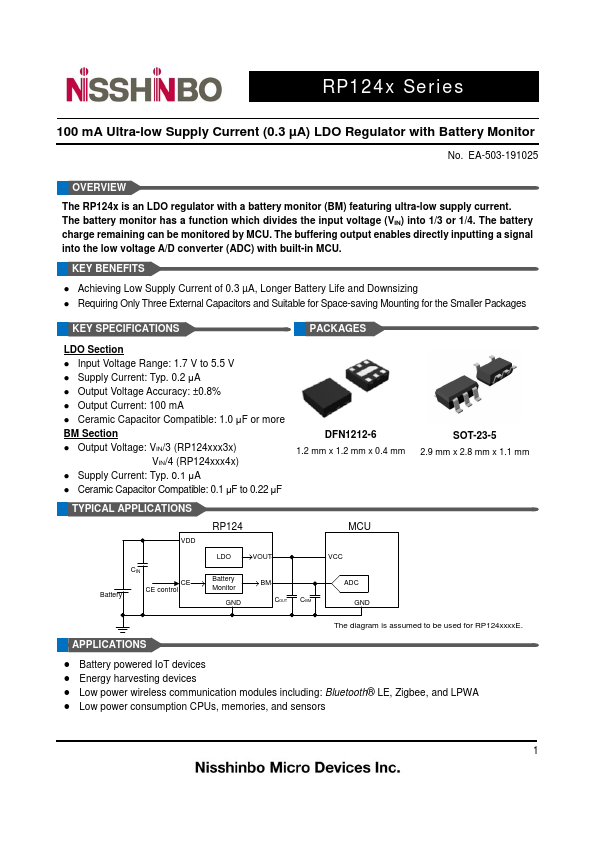

RP124x Series 100 mA Ultra-low Supply Current (0.3 µA) LDO Regulator with Battery Monitor No.EA-503-191025 OVERVIEW The RP124x is an LDO regulator .
Top View 6 5 4 Bottom View 4 5 6 (1) RP124x No.

RP124L Applications

* VDD Battery CIN CE CE control RP124
* MCU LDO VOUT VCC Battery Monitor GND BM COUT C BM ADC GND SOT-23-5 2.9 mm x 2.8 mm x 1.1 mm The diagram is assumed to be used for RP124xxxxE. APPLICATIONS
* Battery powered IoT devices
* Energy harvesting devices
* L

📥 Download Datasheet

Preview of RP124L PDF

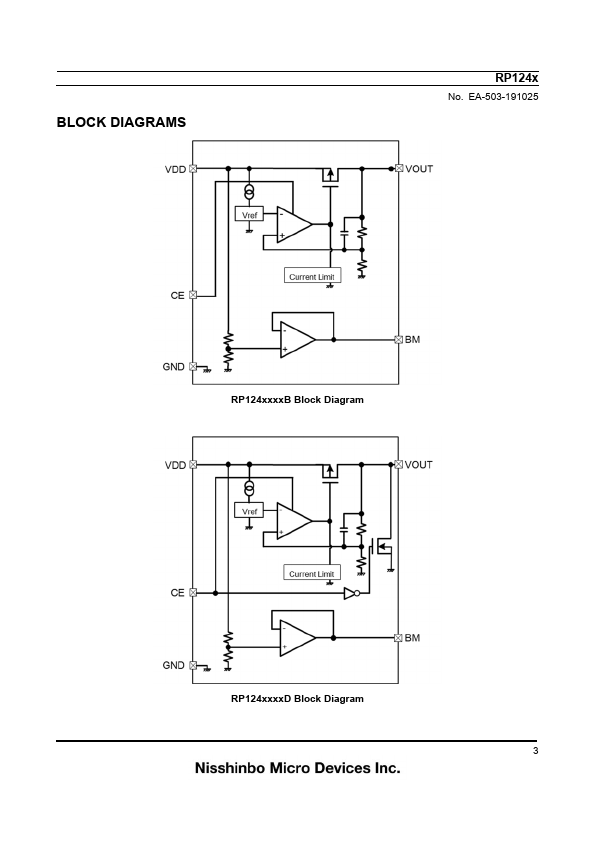

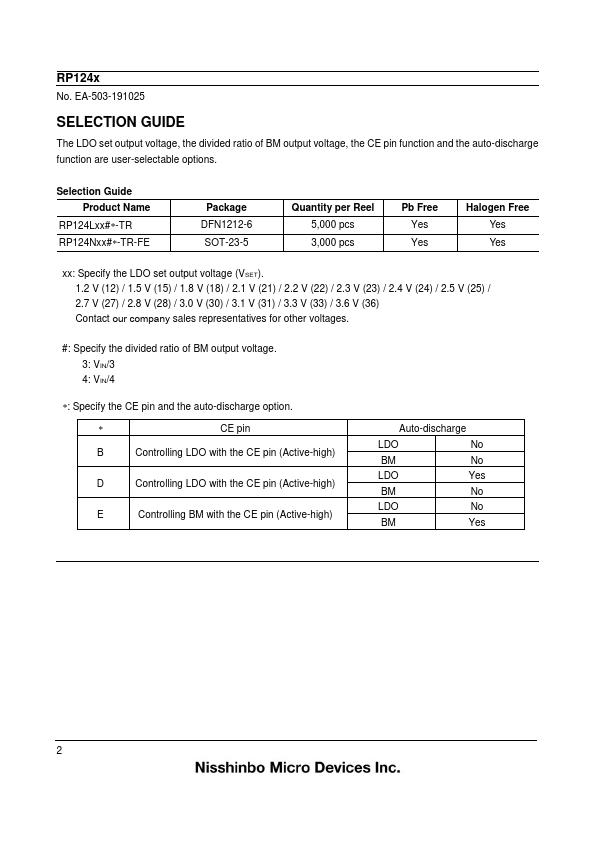

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP124L
Manufacturer
Nisshinbo
File Size
3.07 MB
Datasheet
RP124L-Nisshinbo.pdf
Description
100mA Ultra-low Supply Current LDO Regulator
