RP122K, RP122Z 400mA Low Noise and Low Supply Current LDO Regulator

RP122K Description

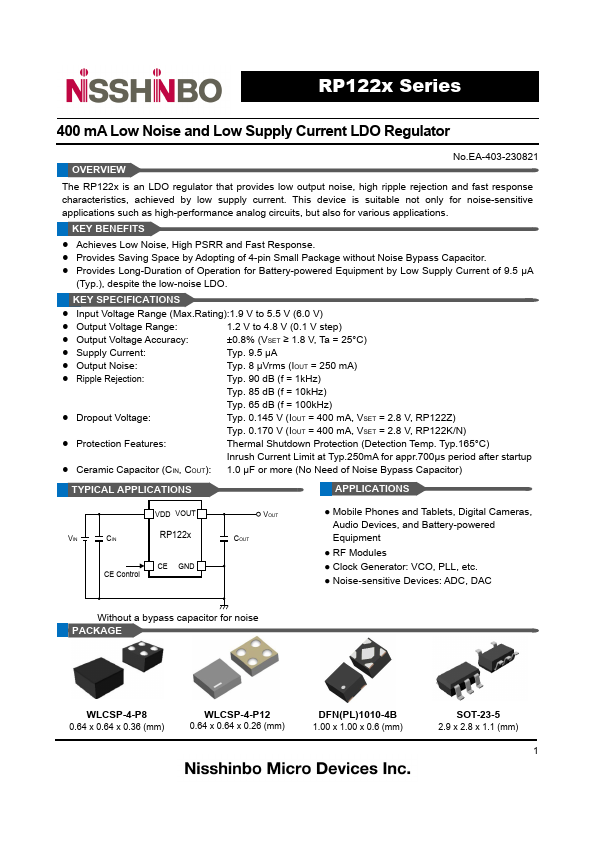

RP122x Series 400 mA Low Noise and Low Supply Current LDO Regulator OVERVIEW No.EA-403-230821 The RP122x is an LDO regulator that provides low out.

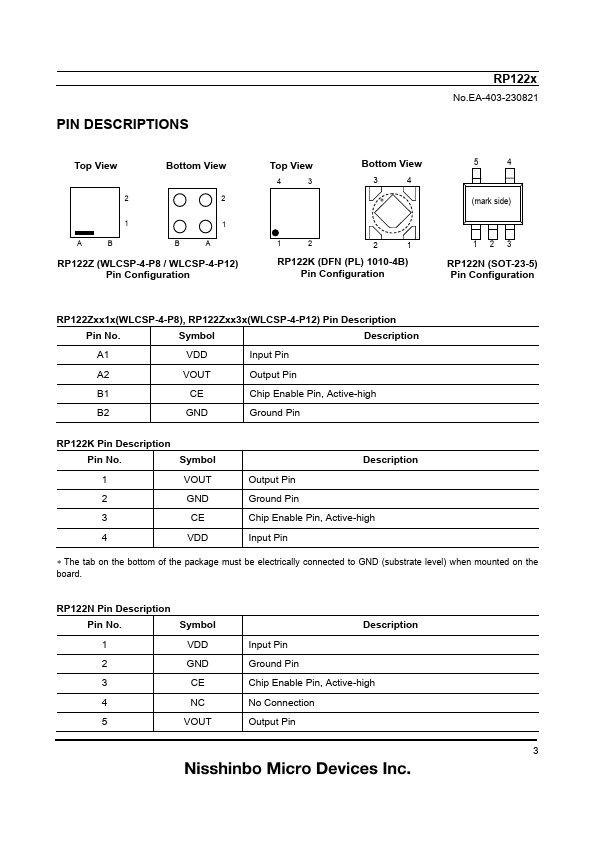

Top View Bottom View 2 2 1 1 A B B A RP122Z (WLCSP-4-P8 / WLCSP-4-P12) Pin Configuration RP122x No.

RP122K Features

* Typ. 0.170 V (IOUT = 400 mA, VSET = 2.8 V, RP122K/N) Thermal Shutdown Protection (Detection Temp. Typ.165°C) Inrush Current Limit at Typ.250mA for appr.700μs period after startup

RP122K Applications

* such as high-performance analog circuits, but also for various applications. KEY BENEFITS
* Achieves Low Noise, High PSRR and Fast Response.
* Provides Saving Space by Adopting of 4-pin Small Package without Noise Bypass Capacitor.
* Provides Long-Duration of Operation for B

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP122K, RP122Z. Please refer to the document for exact specifications by model.

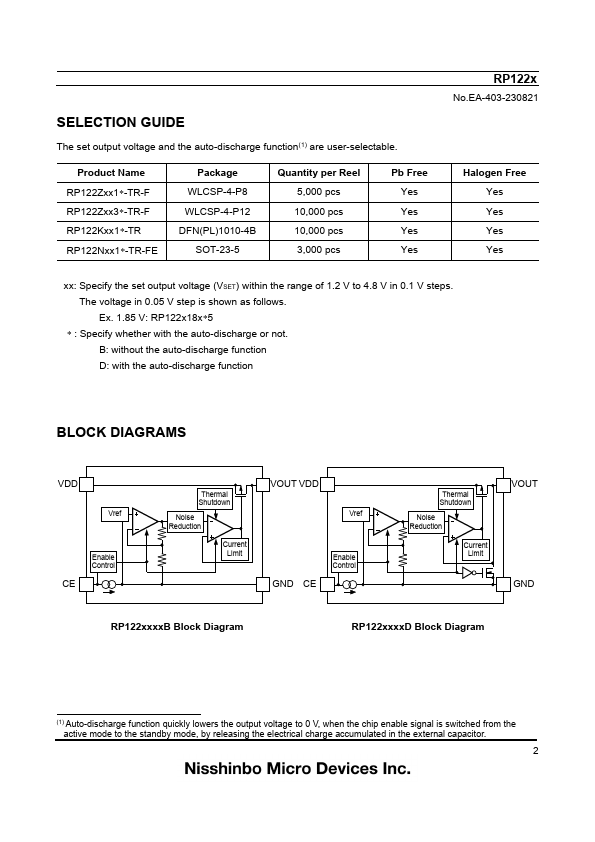

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP122K, RP122Z
Manufacturer
Nisshinbo
File Size
3.88 MB
Datasheet
RP122Z-Nisshinbo.pdf
Description
400mA Low Noise and Low Supply Current LDO Regulator
Note
This datasheet PDF includes multiple part numbers: RP122K, RP122Z.
Please refer to the document for exact specifications by model.
