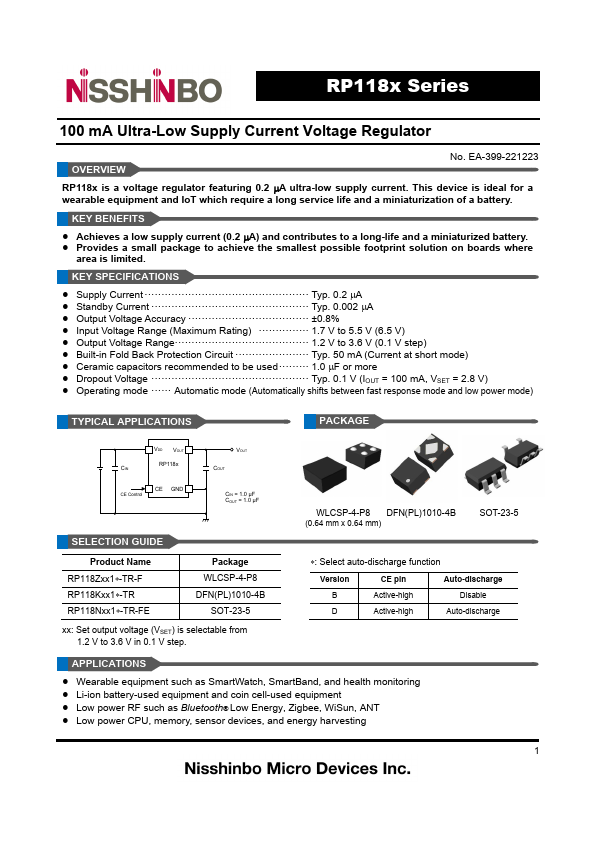

RP118N301D-TR-FE, RP118K171D-TR - 100mA Ultra-Low Supply Current Voltage Regulator

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP118N301D-TR-FE, RP118K171D-TR. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RP118N301D-TR-FE, RP118K171D-TR
Manufacturer Nisshinbo
File Size 2.41 MB
Description 100mA Ultra-Low Supply Current Voltage Regulator
Datasheet download datasheet RP118K171D-TR-Nisshinbo.pdf
Note This datasheet PDF includes multiple part numbers: RP118N301D-TR-FE, RP118K171D-TR.
Please refer to the document for exact specifications by model.

RP118N301D-TR-FE Product details

Description

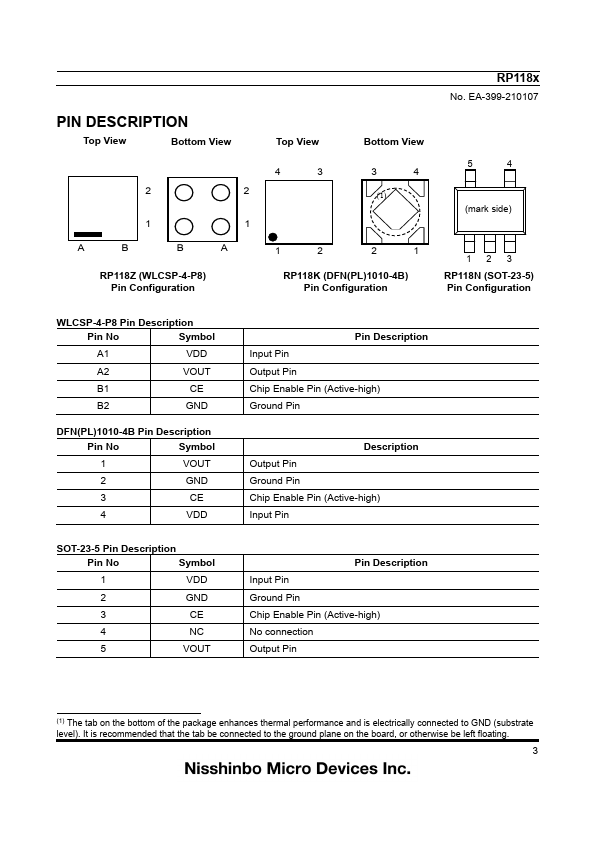

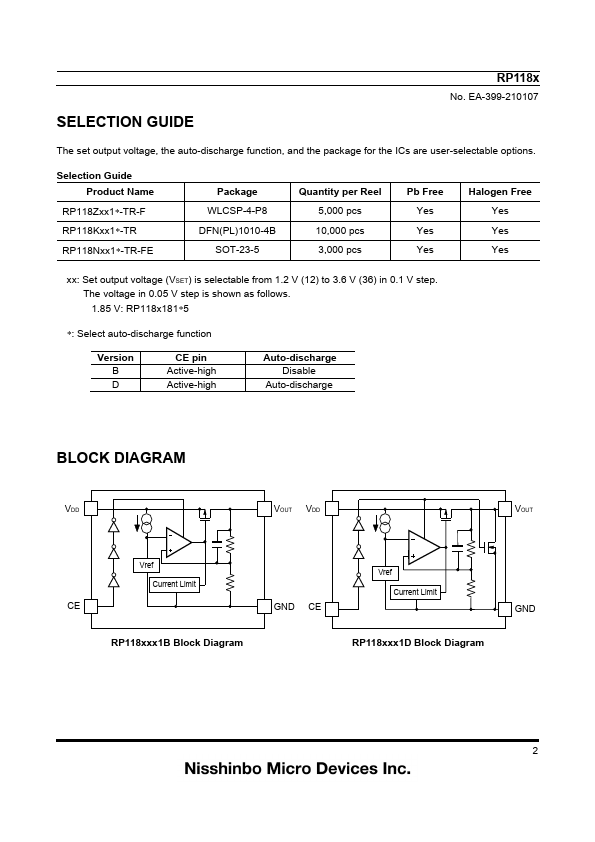

Top View Bottom View 2 2 1 1 A B B A RP118Z (WLCSP-4-P8) Pin Configuration RP118x No.EA-399-210107 Top View 4 3 Bottom View 3 4 (1) 5 4 (mark side) 1 2 2 1 1 RP118K (DFN(PL)1010-4B) Pin Configuration 123 RP118N (SOT-23-5) Pin Configuration WLCSP-4-P8 Pin Description Pin No Symbol A1 VDD A2 VOUT B1 CE B2 GND DFN(PL)1010-4B Pin Description Pin No Symbol 1 VOUT 2 GND 3 CE 4 VDD Pin Description Input Pin Output Pin Chip Enable Pin (Active-high) Gr
