The RP118K301B-TR by Nisshinbo is a 100mA Ultra-Low Supply Current Voltage Regulator. Below is the official datasheet preview.
| Part number | RP118K301B-TR, RP118K171D-TR |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 2.41 MB |
| Description | 100mA Ultra-Low Supply Current Voltage Regulator |
| Datasheet |
 RP118K171D-TR-Nisshinbo.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: RP118K301B-TR, RP118K171D-TR. Please refer to the document for exact specifications by model. |
|
|

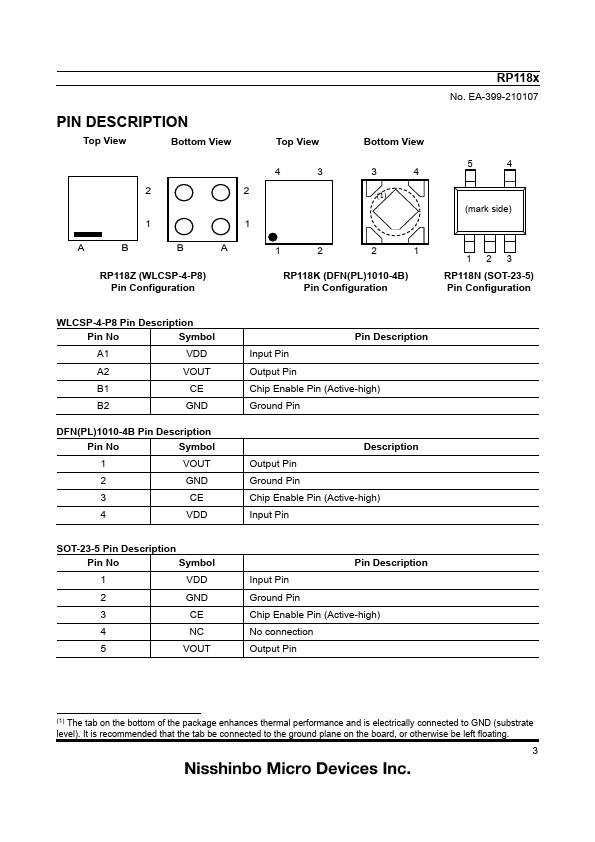

Top View Bottom View 2 2 1 1 A B B A RP118Z (WLCSP-4-P8) Pin Configuration RP118x No.EA-399-210107 Top View 4 3 Bottom View 3 4 (1) 5 4 (mark side) 1 2 2 1 1 RP118K (DFN(PL)1010-4B) Pin Configuration 123 RP118N (SOT-23-5) Pin Configuration WLCSP-4-P8 Pin Description Pin No Symbol A1 VDD A2 VOUT B1 CE B2 GND DFN(PL)1010-4B Pin Description Pin No Symbol 1 VOUT 2 GND 3 CE 4 VDD Pin Description Input Pin Output Pin Chip Enable Pin (Active-high) Gr
