RP118K171D-TR - 100mA Ultra-Low Supply Current Voltage Regulator

📥 Download Datasheet

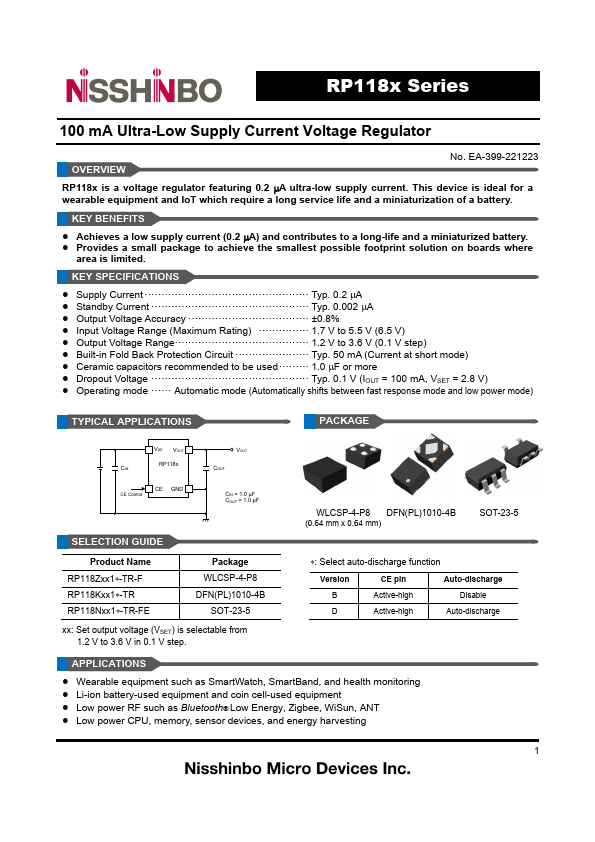

Preview of RP118K171D-TR PDF

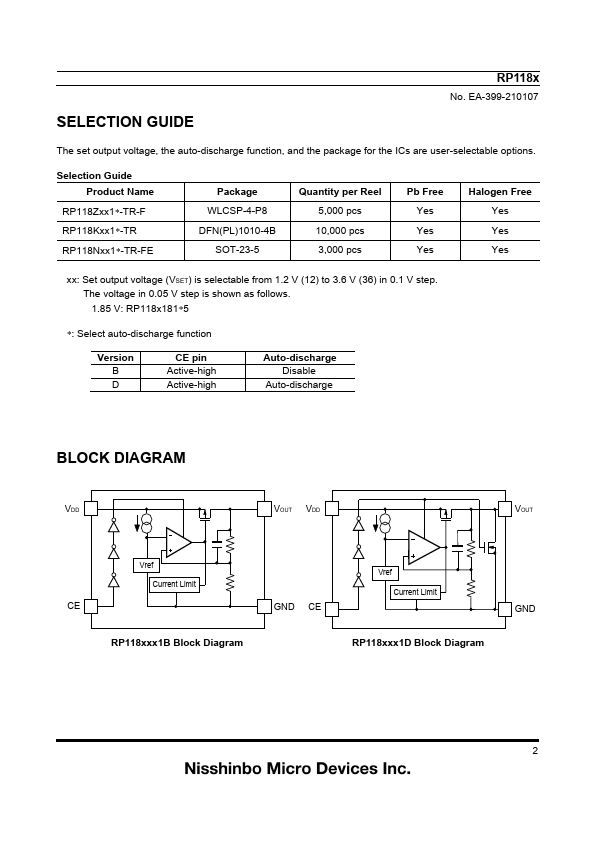

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RP118K171D-TR
Manufacturer Nisshinbo
File Size 2.41 MB
Description 100mA Ultra-Low Supply Current Voltage Regulator
Datasheet download datasheet RP118K171D-TR-Nisshinbo.pdf

RP118K171D-TR Product details

Description

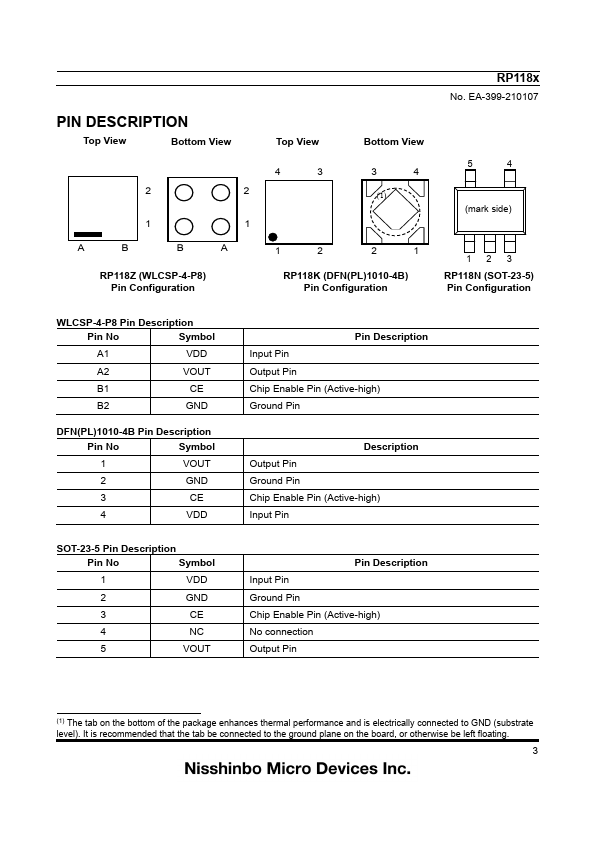

Top View Bottom View 2 2 1 1 A B B A RP118Z (WLCSP-4-P8) Pin Configuration RP118x No.EA-399-210107 Top View 4 3 Bottom View 3 4 (1) 5 4 (mark side) 1 2 2 1 1 RP118K (DFN(PL)1010-4B) Pin Configuration 123 RP118N (SOT-23-5) Pin Configuration WLCSP-4-P8 Pin Description Pin No Symbol A1 VDD A2 VOUT B1 CE B2 GND DFN(PL)1010-4B Pin Description Pin No Symbol 1 VOUT 2 GND 3 CE 4 VDD Pin Description Input Pin Output Pin Chip Enable Pin (Active-high) Gr
