RP111H, RP111L Good Transient Response Low Voltage 500mA LDO

RP111H Description

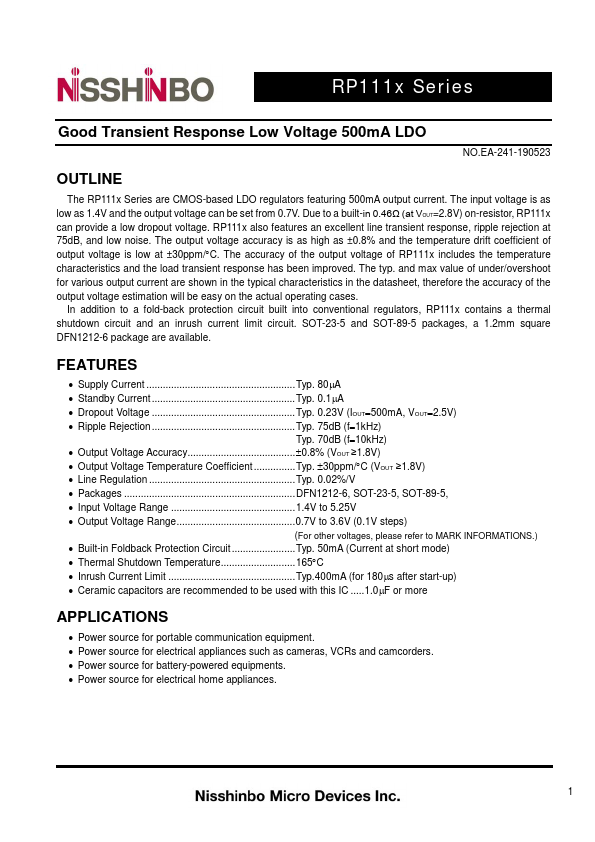

RP111x Series Good Transient Response Low Voltage 500mA LDO NO.EA-241-190523 OUTLINE The RP111x Series are CMOS-based LDO regulators featuring 500m.

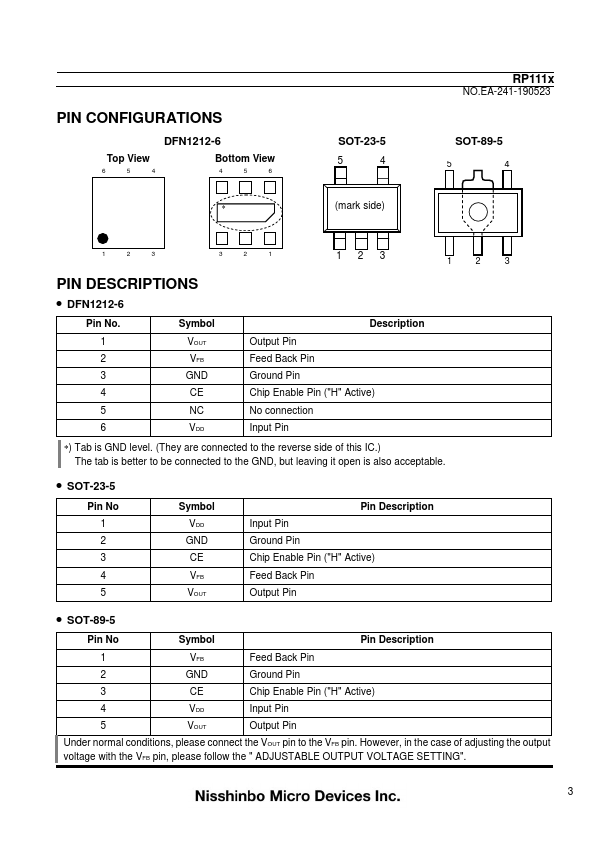

DFN1212-6 Pin No.

RP111H Features

* an excellent line transient response, ripple rejection at 75dB, and low noise. The output voltage accuracy is as high as ±0.8% and the temperature drift coefficient of output voltage is low at ±30ppm/°C. The accuracy of the output voltage of RP111x includes the temperature characteristics and the lo

RP111H Applications

* Power source for portable communication equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.
* Power source for battery-powered equipments.

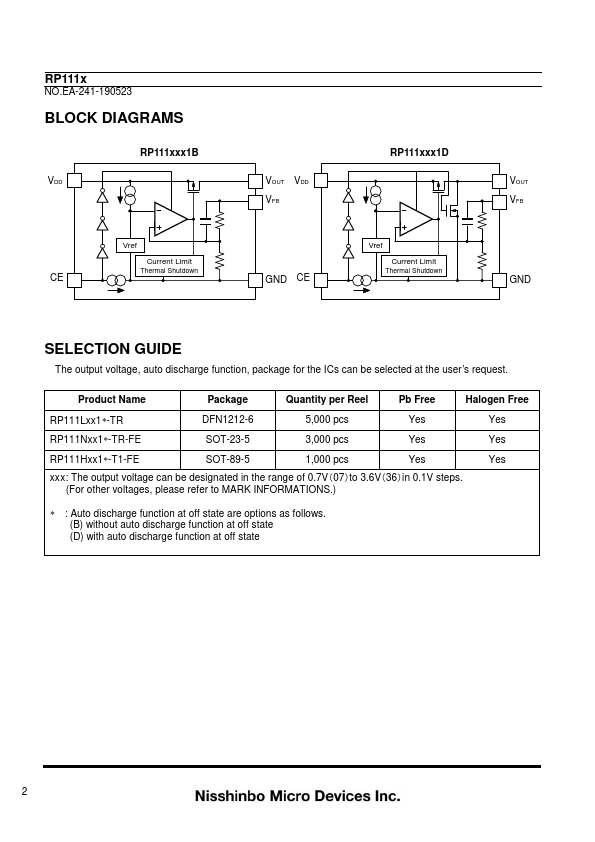

* Power source for electrical home appliances. 1 RP111x NO. EA-241-190523 BLOCK DIAGRAMS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP111H, RP111L. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP111H, RP111L
Manufacturer
Nisshinbo
File Size
1.99 MB
Datasheet
RP111L-Nisshinbo.pdf
Description
Good Transient Response Low Voltage 500mA LDO
Note
This datasheet PDF includes multiple part numbers: RP111H, RP111L.
Please refer to the document for exact specifications by model.
